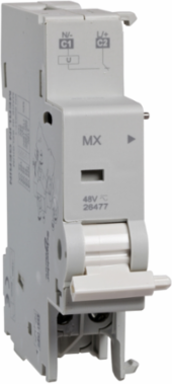

Schneider Electric M9A26477 Multi9 Shunt Trip Release, 48V AC/DC, 2 x 9mm Pitches, DIN Rail Mount
- MPN: M9A26477
- PPN: SCH-M9A26477
CAD
$49.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Multi9 MX electrical auxiliary is a shunt trip release. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. The width in 9mm pitches is 2. The Uc control circuit voltage is 48VAC or 48VDC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to 50°C. The storage temperature is -40°C to 85°C. This product complies with EN/IEC 60947-1 standard.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Belgium
Depth68 mm
Physical Attributes
- Wire Stripping Length
- 9 mm for bottom connection
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Range Of Product
- C60SP, C60BPR, GFP, C60BP
- Control Circuit Voltage 4 Control Circuit Voltage
- 48 V
- [Uc] Control Circuit Voltage
- 48 V AC 50/60 Hz, 48 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.012595738107506764, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.017436636238841875, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.5 kg CO2 eq., 0.5311163929133567
- Local Publishable Date
- 2024-04-16
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 3
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Device Short Name
- MX
- Local Signalling
- action indicator
- Mounting Support
- DIN rail
- Product Or Component Type
- shunt trip release
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Indicate locally and remotely electrical protection device status for 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 1.314
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 82.5 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 70.000 g
- Warranty (In Months)
- 18
- Tsca Regulation
- Does not contain Section 6H Chemical
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Control Circuit Voltage 448 V
Certificate AgencyUR, UL, PCT
Connections - Terminalsclamp terminal bottom) - 1 2.5-2.5 mm² 14 AWG) - rigid, clamp terminal bottom) - 2 1.5-1.5 mm² 16 AWG) - rigid
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.09346121777240084
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.34209351848710734
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1648
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Market SegmentationCommercial
Comb Busbar And Distribution Block Compatibilitytop YES
Energy Efficiency OptimizedFalse
Mounting Modefixed
Product AvailabilityStock - Normally stocked in distribution facility
RangeMulti9
Software Versionv6.2.5-6
Tightening Torque1-1 N.m bottom
Tropicalisation2 EN/IEC 60947-2
Pep CodeENVPEP2206015EN
Pep Verification Date2025-12-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; India, IN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %29
Width Nominal18 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8505907501
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C, -25-50 °C
- Take Back
- No
- Halogene Performance
- Halogen free plastic parts product
- China Rohs Regulation
- X
- Mercury Free
- Yes
- 9 Mm Pitches
- 2
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 95-95 % 55-55 °C
- Pep Verification Date
- 2025-12-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.9967035035192134
Environmental DisclosureENVPEP2206015EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep CodeENVPEP2206015EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Range Of Product
- C60SP, C60BPR, GFP, C60BP
Product Or Component Typeshunt trip release
ETIM
- ETIM 8
- EC001286
ETIM 9EC001286
