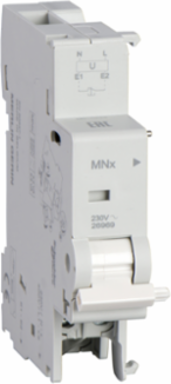

Schneider Electric M9A26969 Multi9 Undervoltage Release - 230 V AC, DIN Rail Mount, 2 Pitches
- MPN: M9A26969
- PPN: SCH-M9A26969
CAD
$157.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Multi9 MNx electrical auxiliary is an undervoltage release. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. The width in 9mm pitches is 2. The Uc control circuit voltage is 230VAC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to 50°C. The storage temperature is -40°C to 85°C. This product complies with EN/IEC 60947-1 standard.
Documentation & Downloads
Specifications
Key Specifications
- [Uc] Control Circuit Voltage
- 230 V AC 50/60 Hz
- Product Or Component Type
- undervoltage release
- Control Type
- with external feeding
9 Mm Pitches2
RangeMulti9
Device Short NameMNx
Complementary
- Height
- 82.5 mm
- Range Compatibility
- Multi 9 Multi9 C60 C60BP || Multi 9 Multi9 C60 C60BPR || Multi 9 Multi9 C60 C60SP || Multi 9 Multi9 GFP GFP || Multi 9 Multi9 C60H-DC C60H-DC
- Net Weight
- 0.073 kg
- Connections - Terminals
- clamp terminal bottom) - 1 2.5-2.5 mm² AWG 14) - rigid || clamp terminal bottom) - 2 1.5-1.5 mm² AWG 16) - rigid
- Local Signalling
- action indicator
- Depth
- 68 mm
Mounting SupportDIN rail
Comb Busbar And Distribution Block Compatibilitytop YES
Wire Stripping Length9 mm for bottom connection
Mounting Modefixed
Width18 mm
Tightening Torque1-1 N.m bottom
Environment
- Product Certifications
- UR || UL || PCT || CSA
- Standards
- EN/IEC 60947-1
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-50 °C
Pollution Degree3
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1305023
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1305023
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
