Multi9 Undervoltage Release 220-240 V AC, 2 Pitches, DIN Rail Mounted
Schneider Electric

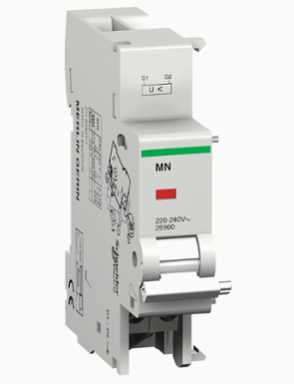

Schneider Electric M9A26960 Multi9 Undervoltage Release 220-240 V AC, 2 Pitches, DIN Rail Mounted

  • MPN: M9A26960
  • PPN: SCH-M9A26960
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $157.78

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Acti9 MN electrical auxiliary is a undervoltage release device. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. It prevents device closing again until its input voltage has been restored. The width in 9mm pitches is 2. The Uc control circuit voltage is 220…240VAC or 24VDC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with EN/IEC 60947-1 standards.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Belgium
    Depth68 mm

    Physical Attributes

    Wire Stripping Length
    9 mm for bottom connection

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Range Of Product
    C60BPR, GFP, C60SP, C60BP
    Control Circuit Voltage 4 Control Circuit Voltage
    220...240 V
    Connections - Terminals
    clamp terminal bottom) - 1 2.5-2.5 mm² 14 AWG) - rigid, clamp terminal bottom) - 2 1.5-1.5 mm² 16 AWG) - rigid
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.1 kg CO2 eq., 0.09208925404714947
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.3 kg CO2 eq., 0.33707175749153734
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    2
    Without Single Use Plastic
    Yes
    Tier Id
    2
    Function Option Id
    STANDARD
    Market Segmentation Id
    COMMERCIAL
    Product Kit Identifier
    N
    Control Type
    standard
    Energy Efficiency Optimized
    False
    Mounting Mode
    fixed
    Product Availability
    Stock - Normally stocked in distribution facility
    Range
    Multi9
    Software Version
    v6.2.5-6
    Tightening Torque
    1-1 N.m bottom
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version
    2024-01
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    Indicate locally and remotely electrical protection device status for 20 years
    Functional-unit Unit
    unit
    Energy Consumption On Product Lifetime In Kwh
    1.314
    Energy Model - Installation [A5]
    No energy used
    Energy Model - End Of Life [C1-c4]
    Global, European and French datasets are used.
    Height Nominal
    82.5 mm
    [Uc] Control Circuit Voltage
    220...240 V AC 50/60 Hz
    Nbr. Of Units In Pkg.
    1
    Silicone-free
    No
    Warranty (In Months)
    18
    Tsca Regulation
    Does not contain Section 6H Chemical
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Control Circuit Voltage 4220...240 V
    Certificate AgencyUR, PCT, UL
    Carbon Footprint Of The Distribution Phase [A4]0.01241083899974692, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.017180675178411965, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.5 kg CO2 eq., 0.5311163929133567
    Local Publishable Date2025-12-12
    Stocking FlagN
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2206015
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date1648
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Market SegmentationCommercial
    Comb Busbar And Distribution Block Compatibilitytop YES
    Device Short NameMN
    Local Signallingaction indicator
    Mounting SupportDIN rail
    Product Or Component Typeundervoltage release
    ReturnabilityYes
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint1 kg CO2 eq.
    Pep CodeENVPEP2206015EN
    Pep Verification Date2025-12-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; India, IN
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
    Recyclability Potential In %29
    Width Nominal18 mm
    Halogen-free StatusHalogen free plastic parts product
    Package Weight(Lbs)75.000 g
    Take-backNo
    Customs Code8536509040

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-50 °C, -25-50 °C
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Carbon Footprint
    0.9898689186302024
    Circularity Profile
    ENVEOLI2206015
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    No
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2025-12-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Halogene PerformanceHalogen free plastic parts product
    China Rohs RegulationX
    Silicon FreeNo
    9 Mm Pitches2
    Environmental DisclosureENVPEP2206015EN
    Halogen Content PerformanceHalogen free plastic parts product
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2206015EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent external review

    General Attributes

    Range Of Product
    C60BPR, GFP, C60SP, C60BP
    Product Or Component Typeundervoltage release

    ETIM

    ETIM 8
    EC001286
    ETIM 9EC001286
