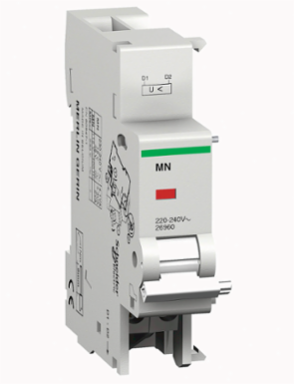

Schneider Electric M9A26961 Multi9 Undervoltage Release, 48 V AC/DC, 18 mm Width, DIN Rail Mount
- MPN: M9A26961
- PPN: SCH-M9A26961
CAD
$157.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Multi9 MN electrical auxiliary is an undervoltage release. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. The width in 9mm pitches is 2. The Uc control circuit voltage is 48VAC or 48VDC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to 50°C. The storage temperature is -40°C to 85°C. This product complies with EN/IEC 60947-1 standard.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Belgium
Depth68 mm
Physical Attributes
- Wire Stripping Length
- 9 mm for bottom connection
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Range Of Product
- C60BP, C60SP, C60BPR, GFP
- Control Circuit Voltage 4 Control Circuit Voltage
- 48 V
- [Uc] Control Circuit Voltage
- 48 V AC 50/60 Hz, 48 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.012436519431380232, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.017216225325693897, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.5 kg CO2 eq., 0.5311163929133567
- Local Publishable Date
- 2024-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 2
- Without Single Use Plastic
- Yes
- Tier Id
- 3
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Control Type
- standard
- Energy Efficiency Optimized
- False
- Mounting Mode
- fixed
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- Multi9
- Software Version
- v6.2.5-6
- Tightening Torque
- 1-1 N.m bottom
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Indicate locally and remotely electrical protection device status for 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 1.314
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 82.5 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 73.000 g
- Take-back
- No
- Customs Code
- 8536509065
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Control Circuit Voltage 448 V
Certificate AgencyPCT, UL, UR
Connections - Terminalsclamp terminal bottom) - 1 2.5-2.5 mm² 14 AWG) - rigid, clamp terminal bottom) - 2 1.5-1.5 mm² 16 AWG) - rigid
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.0922798045645455
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.3377692242964776
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1648
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Market SegmentationCommercial
Comb Busbar And Distribution Block Compatibilitytop YES
Device Short NameMN
Local Signallingaction indicator
Mounting SupportDIN rail
Product Or Component Typeundervoltage release
ReturnabilityYes
Sustainable PackagingNo
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Pep CodeENVPEP2206015EN
Pep Verification Date2025-12-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; India, IN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %29
Width Nominal18 mm
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)18
Tsca RegulationDoes not contain Section 6H Chemical
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C, -25-50 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 0.9908181665314539
- Environmental Disclosure
- ENVPEP2206015EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2206015EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Silicon FreeNo
9 Mm Pitches2
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-12-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Range Of Product
- C60BP, C60SP, C60BPR, GFP
Product Or Component Typeundervoltage release
ETIM
- ETIM 8
- EC001286
ETIM 9EC001286
