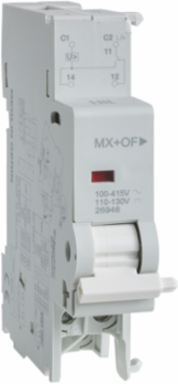

Schneider Electric M9A26946 Multi9 Shunt Trip Release, 110-415V AC, 18mm Width, DIN Rail Mount

MPN: M9A26946
PPN: SCH-M9A26946

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$59.95

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Acti9 MX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. This device includes an open/close contact OF to indicated the position of the associated device. The width in 9mm pitches is 2. The Uc control circuit voltage is 110...415VAC or 110...130VDC . It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with EN/IEC 60947-1 standards.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Belgium, Spain, France, United States

Depth	68 mm

Physical Attributes

Wire Stripping Length	9 mm for bottom connection

Complementary Attributes

Line Rated Current	3-3 A at 415 V, AC6-6 A at <= 240 V, AC

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Range Of Product	C60BP, GFP, C60BPR, C60SP
Control Circuit Voltage 4 Control Circuit Voltage	110...130 V
Connections - Terminals	clamp terminal bottom) - 1 2.5-2.5 mm² 14 AWG) - rigid, clamp terminal bottom) - 2 1.5-1.5 mm² 16 AWG) - rigid
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.0975389988446757, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.4 kg CO2 eq., 0.3570193081128293
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1648
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Commercial
Comb Busbar And Distribution Block Compatibility	top YES
Energy Efficiency Optimized	False
Mounting Mode	fixed
Product Availability	Stock - Normally stocked in distribution facility
Range	Multi9
Signal Contacts Composition	1 C/O
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	1 kg CO2 eq.
Pep Code	ENVPEP2206015EN
Pep Verification Date	2025-12-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; India, IN
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %	29
Width Nominal	18 mm
Halogen-free Status	Halogen free plastic parts product
Package Weight(Lbs)	71.000 g
Warranty (In Months)	18
Tsca Regulation	Does not contain Section 6H Chemical

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Control Circuit Voltage 4	110...130 V
Certificate Agency	CCC, UL, PCT, UR
Carbon Footprint Of The Distribution Phase [A4]	0.013145299344459637, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.018197409390675216
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0.5 kg CO2 eq., 0.5311163929133567
Local Publishable Date	2025-07-09
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Device Short Name	MX + OF
Local Signalling	action indicator
Mounting Support	DIN rail
Product Or Component Type	shunt trip release with OC contact
Returnability	Yes
Software Version	v6.2.5-6
Tightening Torque	1-1 N.m bottom
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Indicate locally and remotely electrical protection device status for 20 years
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	1.314
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	82.5 mm
[Uc] Control Circuit Voltage	110...415 V AC 50/60 Hz110...130 V DC
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8505907501

Environment Attributes Main

Ambient Air Temperature For Operation	-25-50 °C, -25-50 °C
Take Back	No
Halogene Performance	Halogen free plastic parts product
China Rohs Regulation	X
Mercury Free	Yes
9 Mm Pitches	2
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2206015EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	1.0170174086059964
Environmental Disclosure	ENVPEP2206015EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
