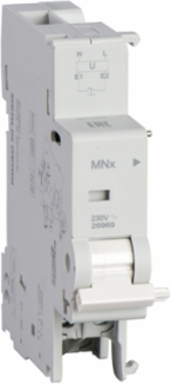

Schneider Electric M9A26971 Multi9 Undervoltage Release 400 V AC, 2 Pitches, 18 mm Width, DIN Rail Mountable
- MPN: M9A26971
- PPN: SCH-M9A26971
CAD
$157.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Multi9 MNx electrical auxiliary is an undervoltage release. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. The width in 9mm pitches is 2. The Uc control circuit voltage is 400VAC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to 50°C. The storage temperature is -40°C to 85°C. This product complies with EN/IEC 60947-1 standard.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Belgium
Depth68 mm
Physical Attributes
- Wire Stripping Length
- 9 mm for bottom connection
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Range Of Product
- GFP, C60BPR, C60BP, C60SP
- Control Circuit Voltage 4 Control Circuit Voltage
- 400 V
- Connections - Terminals
- clamp terminal bottom) - 1 2.5-2.5 mm² 14 AWG) - rigid, clamp terminal bottom) - 2 1.5-1.5 mm² 16 AWG) - rigid
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0983012009142598
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.4 kg CO2 eq., 0.3598091753325904
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1837
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Standard
- Market Segmentation
- Commercial
- Comb Busbar And Distribution Block Compatibility
- top YES
- Device Short Name
- MNx
- Local Signalling
- action indicator
- Mounting Support
- DIN rail
- Product Or Component Type
- undervoltage release
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Pep Code
- ENVPEP2206015EN
- Pep Verification Date
- 2025-12-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; India, IN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 29
- Width Nominal
- 18 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 82.000 g
- Warranty (In Months)
- 18
- Tsca Regulation
- Does not contain Section 6H Chemical
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Control Circuit Voltage 4400 V
Certificate AgencyUR, PCT, UL
Carbon Footprint Of The Distribution Phase [A4]0.013248021070992884, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.01833960997980294, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.5 kg CO2 eq., 0.5311163929133567
Local Publishable Date2024-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label2
Without Single Use PlasticYes
Tier Id3
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Control Typewith external feeding
Energy Efficiency OptimizedFalse
Mounting Modefixed
Product AvailabilityStock - Normally stocked in distribution facility
RangeMulti9
Software Versionv6.2.5-6
Tightening Torque1-1 N.m bottom
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionIndicate locally and remotely electrical protection device status for 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh1.314
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal82.5 mm
[Uc] Control Circuit Voltage400 V AC 50/60 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509065
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C, -25-50 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- 9 Mm Pitches
- 2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-12-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Carbon Footprint1.0208144002110027
Environmental DisclosureENVPEP2206015EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2206015EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Range Of Product
- GFP, C60BPR, C60BP, C60SP
Product Or Component Typeundervoltage release
ETIM
- ETIM 8
- EC001286
ETIM 9EC001286
