Multi9 Shunt Trip Release with OC Contact - 48V AC/DC, 2P 18mm Width
Schneider Electric

Schneider Electric M9A26947 Multi9 Shunt Trip Release with OC Contact - 48V AC/DC, 2P 18mm Width

  • MPN: M9A26947
  • PPN: SCH-M9A26947
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $55.51

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

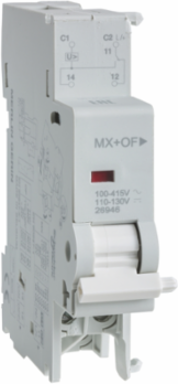

    This Multi9 MX+OF electrical auxiliary is a shunt trip release with OC contact. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. The width in 9mm pitches is 2. The Uc control circuit voltage is 48VAC or 48VDC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to 50°C. The storage temperature is -40°C to 85°C. This product complies with EN/IEC 60947-1 standard.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Belgium
    Depth68 mm

    Physical Attributes

    Wire Stripping Length
    9 mm for bottom connection

    Complementary Attributes

    Line Rated Current
    6-6 A at <= 240 V, AC

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Range Of Product
    GFP, C60BP, C60SP, C60BPR
    Control Circuit Voltage 4 Control Circuit Voltage
    48 V
    [Uc] Control Circuit Voltage
    48 V AC 50/60 Hz, 48 V DC
    Carbon Footprint Of The Distribution Phase [A4]
    0.013145299344459637, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.018197409390675216, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    0.5 kg CO2 eq., 0.5311163929133567
    Local Publishable Date
    2024-04-16
    Stocking Flag
    N
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    3
    Function Option Id
    STANDARD
    Market Segmentation Id
    COMMERCIAL
    Product Kit Identifier
    N
    Device Short Name
    MX + OF
    Local Signalling
    action indicator
    Mounting Support
    DIN rail
    Product Or Component Type
    shunt trip release with OC contact
    Returnability
    Yes
    Software Version
    v6.2.5-6
    Tightening Torque
    1-1 N.m bottom
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version
    2024-01
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    Indicate locally and remotely electrical protection device status for 20 years
    Functional-unit Unit
    unit
    Energy Consumption On Product Lifetime In Kwh
    1.314
    Energy Model - Installation [A5]
    No energy used
    Energy Model - End Of Life [C1-c4]
    Global, European and French datasets are used.
    Height Nominal
    82.5 mm
    Halogen-free Status
    Halogen free plastic parts product
    Package Weight(Lbs)
    74.000 g
    Warranty (In Months)
    18
    Tsca Regulation
    Does not contain Section 6H Chemical
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Control Circuit Voltage 448 V
    Certificate AgencyPCT, CCC, UL, UR
    Connections - Terminalsclamp terminal bottom) - 1 2.5-2.5 mm² 14 AWG) - rigid, clamp terminal bottom) - 2 1.5-1.5 mm² 16 AWG) - rigid
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.0975389988446757
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.3570193081128293
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date1648
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier3
    Function OptionStandard
    Market SegmentationCommercial
    Comb Busbar And Distribution Block Compatibilitytop YES
    Energy Efficiency OptimizedFalse
    Mounting Modefixed
    Product AvailabilityStock - Normally stocked in distribution facility
    RangeMulti9
    Signal Contacts Composition1 C/O
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint1 kg CO2 eq.
    Pep CodeENVPEP2206015EN
    Pep Verification Date2025-12-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; India, IN
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
    Recyclability Potential In %29
    Width Nominal18 mm
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8505907501

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-50 °C, -25-50 °C
    Take Back
    No
    Halogene Performance
    Halogen free plastic parts product
    China Rohs Regulation
    X
    Mercury Free
    Yes
    9 Mm Pitches
    2
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    No
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2206015EN
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Reach Free ShvcYes
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint1.0170174086059964
    Environmental DisclosureENVPEP2206015EN
    Halogen Content PerformanceHalogen free plastic parts product
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2025-12-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Range Of Product
    GFP, C60BP, C60SP, C60BPR
    Product Or Component Typeshunt trip release with OC contact

    ETIM

    ETIM 8
    EC001286
    ETIM 9EC001286
