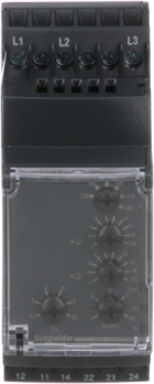

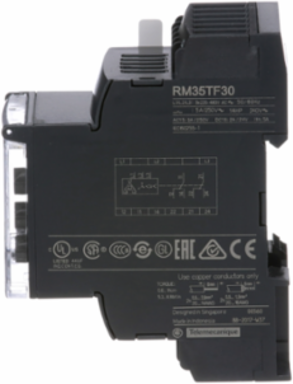

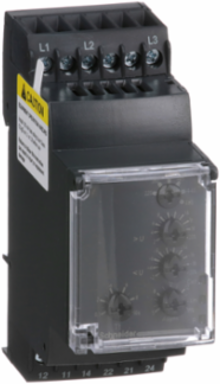

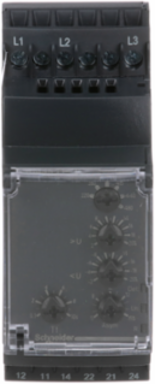

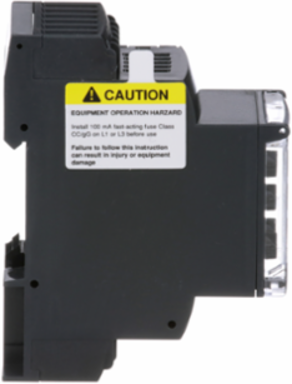

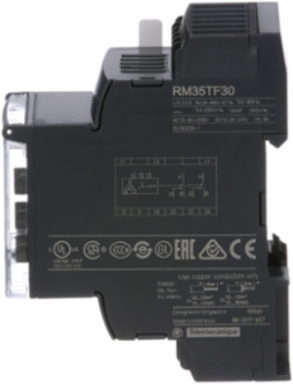

Schneider Electric RM35TF30 Harmony 3-Phase Control Relay, 5A, 220...480V AC, 35mm Width
- MPN: RM35TF30
- PPN: SCH-RM35TF30
CAD
$151.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Harmony 3-Phase Control Relay, 5A, 220...480V AC, 35mm Width
Documentation & Downloads
Specifications

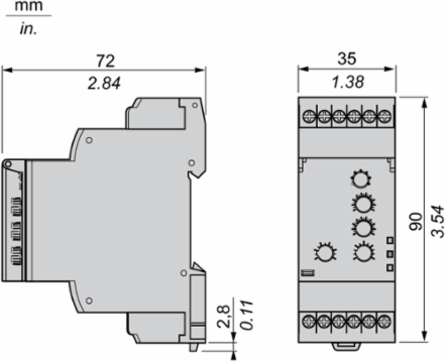

Key Specifications
- Width
- 35 mm
- Depth
- 72 mm
Country of OriginBrazil, France, Indonesia, Mexico, Singapore, United States
Complementary Attributes
- Control Circuit Voltage Limits
- - 12 % + 10 % Un, - 12 % + 10 % Un
- Control Circuit Frequency
- 50...60 Hz +/- 10 %
- Maximum Measuring Cycle
- 140 ms measurement cycle as true rms value
- Minimum Switching Current
- 10 mA 5 V DC
Maximum Switching Current5 A AC, 5 A DC
Line Rated Current5 A
Maximum Switching Voltage250 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- emission standard for industrial environments conforming to IEC 61000-6-4, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, immunity for industrial environments conforming to IEC 61000-6-2
- Local Signalling
- LED (green) for power ON, LED (yellow) for relay ON, LED (yellow) for fault
- Relay Monitored Parameters
- asymmetry, undervoltage and overvoltage in window modephase sequencephase failure detectionasymmetry
- Response Time
- < 200 ms (in the event of a fault), < 200 ms (in the event of a fault)< 200 ms (in the event of a fault), < 200 ms (in the event of a fault)
- Threshold Adjustment Voltage
- -12...-2 % in the range 220 V AC, +2...+10 % in the range 480 V AC, 2...20 % of Un selected, -12...-2 % in the range 220 V AC, +2...+10 % in the range 480 V AC
- Vibration Resistance
- 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1
- Connections - Terminals
- screw connectors, screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.0755394545, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 2.6720909091
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 263.18
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- RM3
- Control Type
- without test button
- Electrical Durability
- 100000 cycles
- Hysteresis
- 2-2 %
- Measurement Range
- 220...480 V AC
- Mechanical Durability
- 30000000 cycles
- Operating Position
- any position without derating
- Power Consumption In Va
- 0-22 VA 400 V AC 50 Hz
- Product Or Component Type
- 3-phase control relay
- Range Of Product
- Harmony Control Relays
- Relay Type
- multifunction control relay
- Returnability
- Yes
- Shock Resistance
- 15 gn 11 ms IEC 60255-21-1
- Supply Frequency
- 50/60 Hz +/- 10 %
- Sustainable Packaging
- Yes
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Total Lifecycle Carbon Footprint
- 95 kg CO2 eq.
- Contacts Composition
- 2 C/O
- Pep Code
- ENVPEP1601004EN
- Pep Verification Date
- 2019-05-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Height Nominal
- 90 mm
- [Uc] Control Circuit Voltage
- 220...480 V
- [Us] Rated Supply Voltage
- , self-powered, self-powered
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Operational Energy Use [B6]
- 3990.096
- Net Use Of Fresh Water (M3) Operational Energy Use [B6]
- 336.1392
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1616.112
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 235.44
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 235.44
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Insulation Resistance> 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5> 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5
Measurement Error< 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation< 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation, 0.05 %/°C with temperature variation
Repeat Accuracy0.3 % time delay, 0.5 % input and measurement circuit
Safety Reliability DataMTTFd = 399.5 years, B10d = 360000
Utilisation CategoryAC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1
Certificate AgencyGL, UL, CSA, GOST, C-tick
Carbon Footprint Of The Distribution Phase [A4]0.0167723636, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0006485936
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]93 kg CO2 eq., 92.70576
Local Publishable Date2026-03-26
Future Imap235.81
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1601004EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1918
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Adjustment Of Asymmetry Threshold5...15 % of Un selected
Contacts Type And Composition2 C/O
Dielectric Test Voltage2 kV AC 50 Hz, 1 min
Housing Materialpolycarbonate
MarkingCE
Measurement Voltage Limits176-528 V AC
Mounting Support35 mm symmetrical DIN rail conforming to IEC 60715
Overvoltage CategoryIII conforming to IEC 60664-1
Product AvailabilityStock - Normally stocked in distribution facility
Product Specific Applicationfor 3-phase supply
Relay NameRM35TF
Reset Time1500 ms at 480 V
Setting Accuracy Of Time Delay10 P
Software VersionEIME v5.8.1
Supply Voltage Limits194-528 V AC, 3 phase
Switching Capacity In Va1250 VA
Time Delay Typeadjustable 0.1...10 s, +/- 10 % of the full scale value Tt- time delay upon fault
Voltage Detection Threshold< 194 V< 194 V
Measurement Range 4220...480 V AC
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo switch ON/OFF electrical contacts when the abnormal operating conditions is detected during 10 years and a 100% use rate.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh189.216
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Width Nominal35 mm
[Ui] Rated Insulation Voltage400 V IEC 60664-1
Run-up Delay At Power-up650 ms
Package Weight(Lbs)131.000 g
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1052.28
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]345.6432
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1851.552
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1616.112
Water Pollution (M3) Operational Energy Use [B6]3825.36
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP20 IEC 60529 terminals), IP30 IEC 60529 casing)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-50 °C-20-50 °C
- Environmental Disclosure
- ENVPEP1601004EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1601004EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Directives89/336/EEC - electromagnetic compatibility, 73/23/EEC - low voltage directive
Take BackNo
China Rohs RegulationX
Carbon Footprint95.4708113209
Circularity ProfileENVEOLI1601004EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % 55-55 °C IEC 60068-2-30
Pep Verification Date2019-05-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- 3-phase control relay
Range Of ProductHarmony Control Relays
ETIM
- ETIM 8
- EC001441
ETIM 9EC001441
Output Attributes
- Nominal Output Current
- 5 A
Output Contacts2 C/O
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
