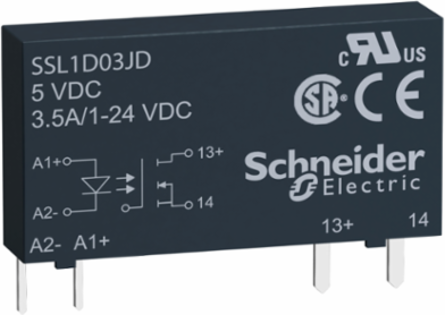

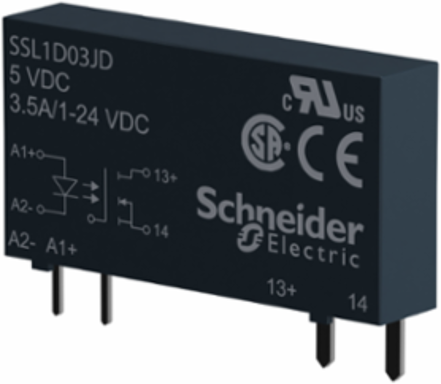

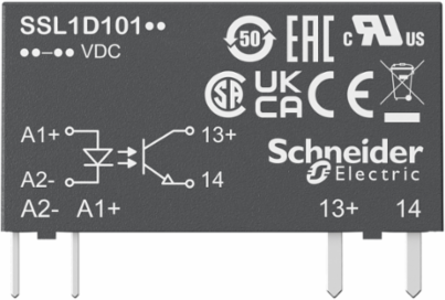

Schneider Electric SSL1D03BD Harmony Solid State Relay, 3.5A, DC Switching, 15-30V DC Input

  • MPN: SSL1D03BD
  • PPN: SCH-SSL1D03BD
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $28.25

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony SSL slim interfacing solid state plug-in relay is rated 3.5A, is controlled with a 15V to 30V DC input, has a rated load voltage of 1V to 24V DC with DC switching. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, France, Mexico, Sweden, United States

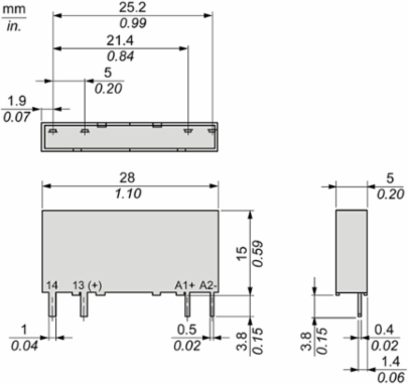

    Depth15 mm

    Complementary Attributes

    Maximum Voltage Drop
    <0.5 V on-state, <0.5 V on-state<0.5 V on-state, <0.5 V on-state, <0.5 V on-state, <0.5 V on-state<0.5 V on-state, <0.5 V on-state
    Line Rated Current
    3.5 A
    Maximum Operating Frequency
    500 Hz
    Minimum Switching Voltage
    15 V DC turn-on
    Absolute Maximum Voltage35 V
    Maximum Leakage Current0.001 mA off-state
    Maximum Switching Voltage10 V DC turn-off
    Rated Current3.5 A

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Electromagnetic Compatibility
    electrostatic discharge - test level: 4 kV criteria B (contact discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV criteria B (air discharge) conforming to IEC 61000-4-2, conducted RF disturbances - test level: 10 V criteria A (0.15...80 MHz) conforming to IEC 61000-4-6radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m criteria A (80 MHz to 1 GHz) conforming to IEC 61000-4-3radiated radio-frequency electromagnetic field immunity test - test level: 3 V/m criteria A (1.4…6 GHz) conforming to IEC 61000-4-3electrical fast transient/burst immunity test - test level: 2 kV criteria B (5 kHz) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV criteria B (5 kHz) conforming to IEC 61000-4-4surge immunity test - test level: 0.5 kV criteria B (line to line) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV criteria B (line to earth) conforming to IEC 61000-4-5, radiated emission - test level: 30...1000 Mhz conforming to IEC 60947-1conducted emission - test level: 0.15...30 Mhz conforming to IEC 60947-1
    Control Circuit Voltage
    15...30 V
    [Uc] Control Circuit Voltage
    DC, 15...30 V
    Carbon Footprint Of The Distribution Phase [A4]
    0.0006451075, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.0000302322
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    16 kg CO2 eq., 16.464112
    Local Publishable Date
    2026-03-26
    Stocking Flag
    N
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    7
    Without Single Use Plastic
    No
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Dielectric Strength
    2500 V for input/output
    Load Current
    0.001-3.5 A
    Mounting Support
    socket
    Phase
    1 phase
    Product Or Component Type
    plug-in relay
    Response Time
    0.2 ms (turn-on)0.1 ms (turn-off)
    Software Version
    EIME v5.7.0.4
    Total Lifecycle Carbon Footprint
    17 kg CO2 eq.
    Database Version
    2018-09
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 100% use rate, in compliance with French standards.
    Functional-unit Unit
    unité (unit)
    Energy Model - Manufacturing [A1-a3]
    Energy model used: China
    Energy Model - Use [B6]
    Electricity mix; AC; &lt;lt/&gt; 1kV; EU-27
    Recyclability Potential In %
    27
    Width Nominal
    5 mm
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    41.8124
    Water Pollution (M3) Operational Energy Use [B6]
    679.3556
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Insulation Resistance> 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC> 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC> 100 MOhm 500 V DC, > 100 MOhm 500 V DC, > 100 MOhm 500 V DC
    Certificate AgencycURus, CSA, EAC, CE, UKCA
    [Uimp] Rated Impulse Withstand Voltage3.5 kV for input/output circuit IEC 62314, IEC 62314, 3.5 kV for input to case UL 508, UL 5083.5 kV for input to case IEC 623143.5 kV for input/output circuit UL 508, 3.5 kV output to case
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.001276005, 0 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.1560610782
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Device Short NameSSL
    Flame RetardanceV0 conforming to UL 94
    MarkingCE
    Overvoltage CategoryIII
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony Solid State Relays
    ReturnabilityYes
    Sustainable PackagingNo
    Pep CodeENVPEP2504008EN
    Pep Verification Date2018-09-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity mix; AC; &lt;lt/&gt; 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; &lt;lt/&gt; 1kV; EU-27
    Height Nominal28 mm
    [Ui] Rated Insulation Voltage30 V
    Package Weight(Lbs)4.000 g
    Warranty (In Months)18
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]41.8124
    Customs Code8536410060

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -20-80 °C, -20-80 °C, -20-80 °C, -20-80 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    16.6221244229
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2018-09-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Ambient Air Temperature For Storage-20-85 °C, -20-85 °C, -20-85 °C, -20-85 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP2504008EN
    Ip Degree Of ProtectionIP00
    Packaging Without Single Use PlasticNo
    Pep CodeENVPEP2504008EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Phase
    1 phase
    Range Of Product
    Harmony Solid State Relays
    Product Or Component Typeplug-in relay

    ETIM

    ETIM 8
    EC002055
    ETIM 9EC002055

    Output Attributes

    Solid State Output Type
    Mosfet output, DC switching
    Output Voltage
    3...30 V DC
    Output Switching ModeDC switching

    Surge Protection And Filtering Attributes

    Surge Current
    9 A 10 ms

    Input Attributes

    Input Current
    7 mA
    Input Impedance3500 Ohm

    Overview Attributes

    Device Presentation
    complete product
