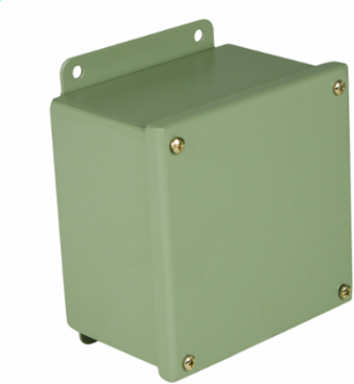

Wiegmann B121206SC N12 JIC Screw-Cover 12X12X6 Carbon Steel - Gray
- MPN: B121206SC
- UPC: 786725330881
- PPN: HBL-B121206SC
- UNSPSC: 39121324
CAD
$415.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N12 JIC Screw-Cover 12X12X6 Carbon Steel - Gray
Features
- Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts of holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided to secure optional back panel. Captivated cover screws are provided which thread into sealed wells to prevent leakage through cover. Grounding provisions provided.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Color | Ansi-61 Gray Textured |
| Cubic Capacity | 864 cu.in |
| Finish | Textured |
| Mounting | External Mounting Plates |
| Standard | cULus |
| Width | 12 in |
| Engineering Drawing 3 Display Text | MOD Center Drawings Instructions |
| Mounting Type | External Mounting Plates |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | JIC,CS,SCREW COVER,12X12X6 |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| UL Listed | Yes |
| Material | Carbon Steel |
| BOX SIZE | 9.550x16.350x14.350 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725330881 |
| Pallet Height | 42.700 in |
| Pallet Weight | 329.400 lb. |
| NAICS Code | 3359326101 |
| Application | Designed for use as instrument housings, electrical control enclosures, terminal wiring boxes, or electrical junction boxes. Provides protection from dirt, dust, oil, and water. |
|---|---|
| Cover Type | Screw Cover |
| Depth | 6 in |
| Height | 12 in |
| NEMA Rating | 12 |
| Type | Enclosure |
| Weight | 15 lb. |
| Finish Type | Textured |
| Nema Rating | 12 |
| Class Code | P04 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P04P067 |
| Construction | Continuously Welded Seams |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 15.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
Certifications
| Buy American Compliant | No |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
