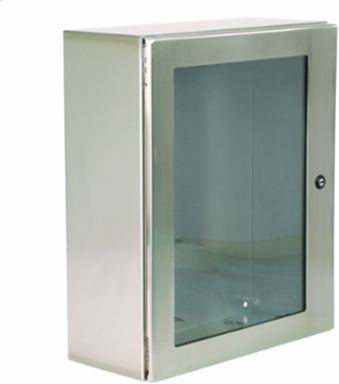

Wiegmann N412121206WSSC N412 Single Door Wall-Mount Ultimate with Window 12X12X6 304 Stainless Steel
- MPN: N412121206WSSC
- UPC: 786725860128
- PPN: HBL-N412121206WSSC
- UNSPSC: 39121324
CAD
$2618.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N412 Single Door Wall-Mount Ultimate with Window 12X12X6 304 Stainless Steel
Features
- Hubbell Wiegmann N412WSSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments
- For use in installations where dirt, dust, oil, water or other contaminants are present
- Typically used in the following areas where corrosion-resistant protection is needed: food processing plants, pharmaceutical manufacturing facilities, petrochemical plants, pulp and paper processing and waste water treatment facilities
- Streamlined styling, flush latching and attractive stainless steel finish complement any high tech electronic equipment.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Width
- 12.06 in
- Number of Doors (Fixed)
- 1
- Cable Entry
- NO
- Cover Type
- Door
- Depth
- 6 in
- Height
- 12 in
- NEMA Rating
- 1,3R,12,13,4,4X
- Sub Brand
- Ultimate Series
- Width
- 12 in
- Engineering Drawing 3 Display Text
- MOD Center Drawings Instructions
- Knockouts
- No
- Nema Rating
- 1,3R,12,13,4,4X
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- N412,ULTIMATE,WINDOW,12X12X6
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- 1/4 Turn
- Construction
- Continuously Welded Seams
- Series
- N412-WSSC Series
- BOX SIZE
- 8.000x15.000x13.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725860128
- Pallet Height
- 44.500 in
- Pallet Weight
- 675.000 lb.
- NAICS Code
- 3359326101
Actual Depth7.75 in
Industry Standard(s)cULus;IEC 60529
ApplicationHubbell Wiegmann N412WSSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are pr
ColorBrushes Stainless Steel
Cubic Capacity864 cu.in
FinishSmooth Grained Stainless
MountingMounting Holes
StandardcULus;IEC 60529
TypeEnclosure
Weight16 lb.
Finish TypeSmooth Grained Stainless
Mounting TypeMounting Holes
Number of Holes4
Class CodeP03
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP03P057
UL ListedYes
MaterialStainless Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack16.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- cULus
- YES
- Certified Listed
- cULus;IEC
- Listings
- UL, CSA
CSA ApprovedNO
ETLNO
EU RoHS IndicatorYes
