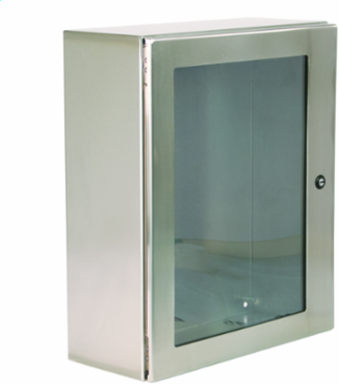

Wiegmann N412202012WSSC N412 Single Door Wall-Mount Ultimate with Window 20X20X12 304 Stainless Steel
Wiegmann N412202012WSSC N412 Single Door Wall-Mount Ultimate with Window 20X20X12 304 Stainless Steel
- MPN: N412202012WSSC
- UPC: 786725860258
- PPN: HBL-N412202012WSSC
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4901.49/ EA
Description
N412 Single Door Wall-Mount Ultimate with Window 20X20X12 304 Stainless Steel
Features
- Hubbell Wiegmann N412WSSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments
- For use in installations where dirt, dust, oil, water or other contaminants are present
- Typically used in the following areas where corrosion-resistant protection is needed: food processing plants, pharmaceutical manufacturing facilities, petrochemical plants, pulp and paper processing and waste water treatment facilities
- Streamlined styling, flush latching and attractive stainless steel finish complement any high tech electronic equipment.
Specifications
Specifications
- Country of Origin
- Mexico
- Actual Height
- 22.5 in
- Industry Standard(s)
- cULus;IEC 60529
- Application
- Hubbell Wiegmann N412WSSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are pr
- Color
- Brushes Stainless Steel
- Cubic Capacity
- 4800 cu.in
- Finish
- Smooth Grained Stainless
- Mounting
- Mounting Holes
- Standard
- cULus;IEC 60529
- Type
- Enclosure
- Weight
- 44 lb.
- Finish Type
- Smooth Grained Stainless
- Mounting Type
- Mounting Holes
- Number of Holes
- 4
- Class Code
- P03
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P03P057
- UL Listed
- Yes
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 44.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
Actual Depth13.75 in
Actual Width20.06 in
Number of Doors (Fixed)1
Cable EntryNO
Cover TypeDoor
Depth12 in
Height20 in
NEMA Rating1,3R,12,13,4,4X
Sub BrandUltimate Series
Width20 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
KnockoutsNo
Nema Rating1,3R,12,13,4,4X
ARRA CompliantContact Manufacturer
Description - InvoiceN412,ULTIMATE,WINDOW,20X20X12
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches Type1/4 Turn
ConstructionContinuously Welded Seams
SeriesN412-WSSC Seires
BOX SIZE13.750x22.500x20.060 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725860258
Certifications
- Buy American Compliant
- Contact Manufacturer
- cULus
- YES
- Certified Listed
- cULus;IEC
- Listings
- UL, CSA
CSA ApprovedNO
ETLNO
EU RoHS IndicatorYes
