Wiegmann N412242012WSSC N412 Single Door Wall-Mount Ultimate with Window 24X20X12 304 Stainless Steel
Wiegmann N412242012WSSC N412 Single Door Wall-Mount Ultimate with Window 24X20X12 304 Stainless Steel
- MPN: N412242012WSSC
- UPC: 786725860265
- PPN: HBL-N412242012WSSC
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description

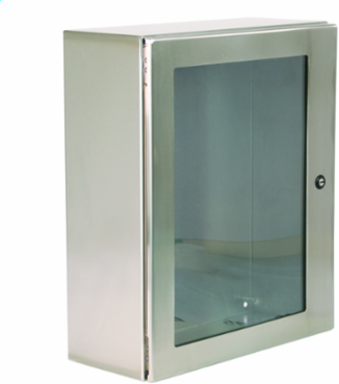

N412 Single Door Wall-Mount Ultimate with Window 24X20X12 304 Stainless Steel
Features
- Hubbell Wiegmann N412WSSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments
- For use in installations where dirt, dust, oil, water or other contaminants are present
- Typically used in the following areas where corrosion-resistant protection is needed: food processing plants, pharmaceutical manufacturing facilities, petrochemical plants, pulp and paper processing and waste water treatment facilities
- Streamlined styling, flush latching and attractive stainless steel finish complement any high tech electronic equipment.
Specifications
Specifications
- Country of Origin
- Mexico
- Actual Height
- 26.5 in
- Industry Standard(s)
- cULus;IEC 60529
- Application
- Hubbell Wiegmann N412WSSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are pr
- Color
- Brushes Stainless Steel
- Cubic Capacity
- 5760 cu.in
- Finish
- Smooth Grained Stainless
- Mounting
- Mounting Holes
- Standard
- cULus;IEC 60529
- Type
- Enclosure
- Weight
- 57 lb.
- Knockouts
- No
- Nema Rating
- 1,3R,12,13,4,4X
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- N412,ULTIMATE,WINDOW,24X20X12
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- 1/4 Turn
- Construction
- Continuously Welded Seams
- Series
- N412-WSSC Seires
- BOX SIZE
- 13.750x26.500x20.060 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725860265
Actual Depth13.75 in
Actual Width20.06 in
Number of Doors (Fixed)1
Cable EntryNO
Cover TypeDoor
Depth12 in
Height24 in
NEMA Rating1,3R,12,13,4,4X
Sub BrandUltimate Series
Width20 in
Finish TypeSmooth Grained Stainless
Mounting TypeMounting Holes
Number of Holes4
Class CodeP03
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP03P057
UL ListedYes
MaterialStainless Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack57.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Certifications
- Buy American Compliant
- Contact Manufacturer
- cULus
- YES
- Certified Listed
- cULus;IEC
- Listings
- UL, CSA
CSA ApprovedNO
ETLNO
EU RoHS IndicatorYes
