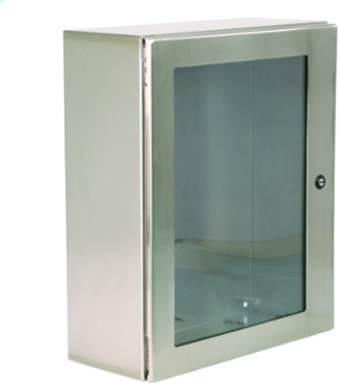

Wiegmann N412242408WSSC N412 Single Door Wall-Mount Ultimate with Window 24X24X8 304 Stainless Steel
- MPN: N412242408WSSC
- UPC: 786725860234
- PPN: HBL-N412242408WSSC
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N412 Single Door Wall-Mount Ultimate with Window 24X24X8 304 Stainless Steel
Features
- Hubbell Wiegmann N412WSSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments
- For use in installations where dirt, dust, oil, water or other contaminants are present
- Typically used in the following areas where corrosion-resistant protection is needed: food processing plants, pharmaceutical manufacturing facilities, petrochemical plants, pulp and paper processing and waste water treatment facilities
- Streamlined styling, flush latching and attractive stainless steel finish complement any high tech electronic equipment.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 26.5 in
- Industry Standard(s)
- cULus;IEC 60529
- Application
- Hubbell Wiegmann N412WSSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are pr
- Color
- Brushes Stainless Steel
- Cubic Capacity
- 4608 cu.in
- Finish
- Smooth Grained Stainless
- Mounting
- Mounting Holes
- Standard
- cULus;IEC 60529
- Type
- Enclosure
- Weight
- 53 lb.
- Knockouts
- No
- Nema Rating
- 1,3R,12,13,4,4X
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- N412,ULTIMATE,WINDOW,24X24X8
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- 1/4 Turn
- Construction
- Continuously Welded Seams
- Series
- N412-WSSC Series
- BOX SIZE
- 9.800x27.125x24.500 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725860234
- Pallet Height
- 44.200 in
- Pallet Weight
- 464.000 lb.
- NAICS Code
- 3359326101
Actual Depth9.75 in
Actual Width24.06 in
Number of Doors (Fixed)1
Cable EntryNO
Cover TypeDoor
Depth8 in
Height24 in
NEMA Rating1,3R,12,13,4,4X
Sub BrandUltimate Series
Width24 in
Finish TypeSmooth Grained Stainless
Mounting TypeMounting Holes
Number of Holes4
Class CodeP03
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP03P057
UL ListedYes
MaterialStainless Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack53.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- cULus
- YES
- Certified Listed
- cULus;IEC
- Listings
- UL, CSA
CSA ApprovedNO
ETLNO
EU RoHS IndicatorYes
