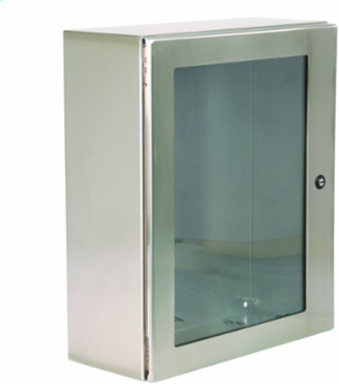

Wiegmann N412302410WSSC N412 Single Door Wall-Mount Ultimate with Window 30X24X10 304 Stainless Steel
Wiegmann N412302410WSSC N412 Single Door Wall-Mount Ultimate with Window 30X24X10 304 Stainless Steel
- MPN: N412302410WSSC
- UPC: 786725864065
- PPN: HBL-N412302410WSSC
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
N412 Single Door Wall-Mount Ultimate with Window 30X24X10 304 Stainless Steel
Features
- Hubbell Wiegmann N412WSSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments
- For use in installations where dirt, dust, oil, water or other contaminants are present
- Typically used in the following areas where corrosion-resistant protection is needed: food processing plants, pharmaceutical manufacturing facilities, petrochemical plants, pulp and paper processing and waste water treatment facilities
- Streamlined styling, flush latching and attractive stainless steel finish complement any high tech electronic equipment.
Specifications
Specifications
- Cubic Capacity
- 7200 cu.in
- Mounting
- Mounting Holes
- Standard
- cULus;IEC 60529
- ARRA Compliant
- Contact Manufacturer
- Country of Origin
- Mexico
- Actual Height
- 30 in
- Color
- Brushes Stainless Steel
- Height
- 30 in
- Number of Doors (Fixed)
- 1
- Width
- 24 in
- Application
- Hubbell Wiegmann N412WSSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are pr
- Cover Type
- Door
- Knockouts
- No
- Nema Rating
- 1,3R,12,13,4,4X
- Type
- Enclosure
- Description - Invoice
- N412,ULTIMATE,WINDOW,SS,30X24X10
- Harmonization Code
- 7326908588
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Sub Class Code
- P03P057
- UL Listed
- Yes
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725864065
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
FinishSmooth Grained Stainless
NEMA Rating1,3R,12,13,4,4X
Sub BrandUltimate Series
Stock IndicatorS - Shelf Stock
Actual Depth11.75 in
Actual Width24.06 in
Depth10 in
Industry Standard(s)cULus;IEC 60529
Weight63 lb.
Engineering Drawing 2 Display TextMOD Center Drawings Instructions
Cable EntryNO
Finish TypeSmooth Grained Stainless
Mounting TypeMounting Holes
Number of Holes4
Class CodeP03
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Latches Type1/4 Turn
ConstructionContinuously Welded Seams
SeriesN412-WSSC Seires
BOX SIZE12.000x34.000x25.000 (in)
Pallet Height40.500 in
Pallet Weight222.000 lb.
Certifications
- Buy American Compliant
- Contact Manufacturer
- cULus
- YES
- Certified Listed
- cULus;IEC
- Listings
- cULus;IEC 60529
CSA ApprovedNO
ETLNO
EU RoHS IndicatorYes
