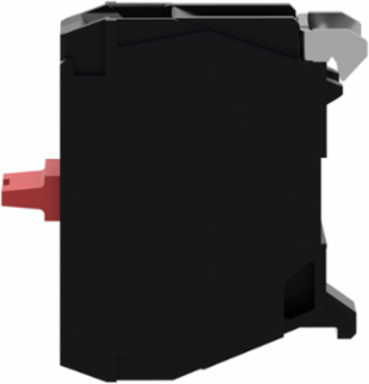

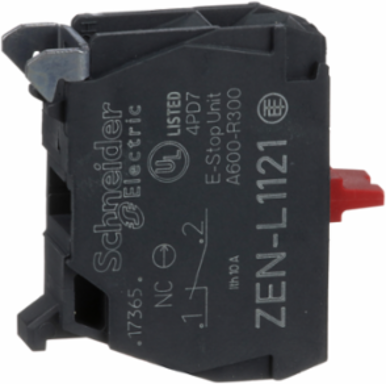

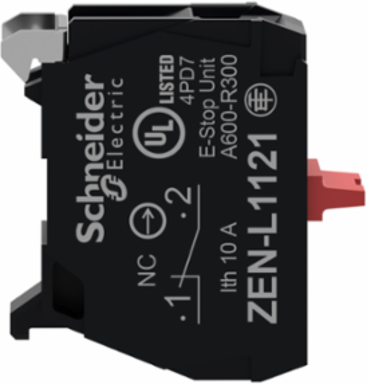

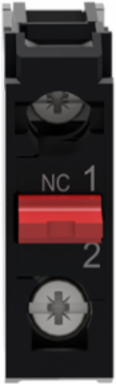

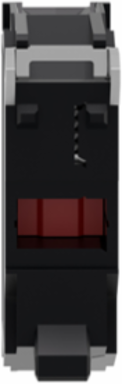

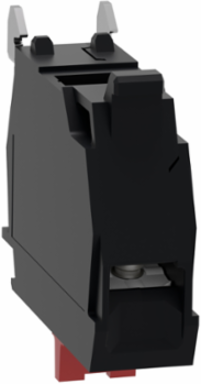

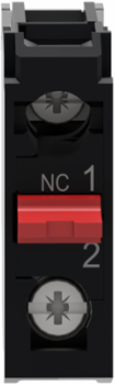

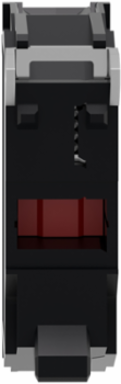

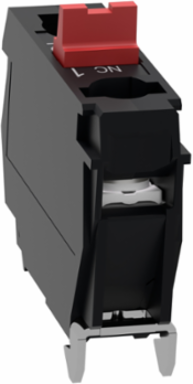

Schneider Electric ZENL1121 Harmony XAL Contact Block, 1 NC, Silver Alloy, Rear Mounting

  • MPN: ZENL1121
  • PPN: SCH-ZENL1121
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $16.40

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

    Features

    • The Schneider Electric ZENL1121 is a high-reliability contact block from the Harmony XAL series. It is the component that actually makes or breaks the electrical connection when you press a button. Designed for a "back-of-panel" mounting style, it is a staple in Canadian industrial control systems for signaling and low-power switching.
    • This block features a 1 NC contact configuration. In the world of industrial automation, "Normally Closed" means that electricity flows through the block in its resting state and is interrupted only when the button is pressed. This makes the ZENL1121 the standard choice for "Stop" buttons and safety interlocks across Canada.
    • The "ZENL" prefix indicates that this is a rear-mounting block. Unlike the "ZBE" blocks that clip onto a metal collar behind a panel, these are designed to snap directly into the base of a Harmony XALD or XALK plastic control station. This design keeps the wiring neatly tucked away in the back of the box, away from the moving button mechanism.
    • Equipped with silver alloy contacts, the ZENL1121 is designed for high electrical durability. It is rated for AC-15 and DC-13 (pilot duty), meaning it can reliably handle the inductive inrush of contactor coils or relay inputs without "pitting" or sticking, even in high-vibration environments like Canadian sawmills or packaging plants.
    • The block features IP20-rated finger-safe screw terminals. These terminals are easy to wire using standard Canadian #14 to #18 AWG industrial wire. The screws are designed with high-torque capability to ensure a "gas-tight" connection that won't vibrate loose over time.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, United States

    Complementary Attributes

    Maximum Resistance Across Terminals
    25 MOhm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Electrical Composition Code
    SR1 3 )SR2 2 ), MR1 2 )
    Electrical Reliability
    λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
    Range Of Product
    Harmony XAPS, Harmony XAL
    Certificate Agency
    IEC 60947-5-5, IEC 60947-5-4, UL 508, JIS C8201-5-1, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-1
    Carbon Footprint Of The Distribution Phase [A4]
    0.0022765981, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.0056538077, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    0 kg CO2 eq., 0.023894
    Local Publishable Date
    2026-01-12
    Stocking Flag
    Y
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Compatibility Code
    ZENL
    Contacts Material
    silver alloy (Ag/Ni)
    Device Short Name
    ZENL
    Mounting Of Block
    rear mounting
    Operating Travel
    1.5 mm NC changing electrical state)4.3 mm total travel)
    Product Availability
    Stock - Normally stocked in distribution facility
    Protective Treatment
    TH
    Sale Per Indivisible Quantity
    5
    Software Version
    v5.9.4
    Tightening Torque
    0.8-1.2 N.m IEC 60947-1
    Vibration Resistance
    5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
    Pep Code
    ENVPEP2304014EN
    Pep Verification Date
    2023-04-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    10
    Recyclability Potential In %
    50
    [Ui] Rated Insulation Voltage
    600 V 3)IEC 60947-1
    Connections - Terminals
    screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536509035
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Product Destinationfor XAPS control station, for XB5 Ø 22 mm control and signalling units
    Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    [Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0145280712
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.0509749861
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Assembly Stylefor customer assembly
    Contact Operationslow-break
    Contacts Type And Composition1 NC
    Mechanical Durability10000000 cycles
    Operating Force2 N NC changing electrical state
    Positive Openingwith IEC 60947-5-1 appendix K
    Product Or Component Typecontact block
    ReturnabilityYes
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint0.1 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionPush button contact blocks are an important electrical component used in a variety of applications. They provide a way to control, monitor, and switch electrical circuits on and off. This contact block consumes 0.002 W with a 30% utilisation rate and the product has a life of 10 years while adhering to standards IEC 60947-1 &amp; IEC 60947-5-4
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    [Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
    Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
    Package Weight(Lbs)9.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    0.097327463
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2304014EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Environmental DisclosureENVPEP2304014EN
    Ip Degree Of ProtectionIP20 IEC 60529
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-04-01
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Range Of Product
    Harmony XAPS, Harmony XAL
    Product Or Component Typecontact block

    ETIM

    ETIM 8
    EC000041
    ETIM 9EC000041

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
