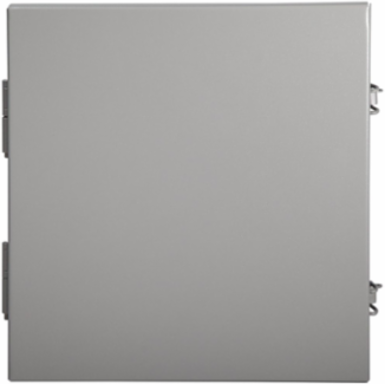

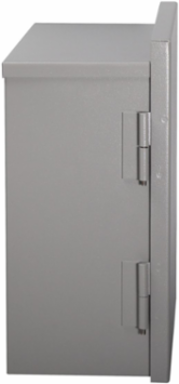

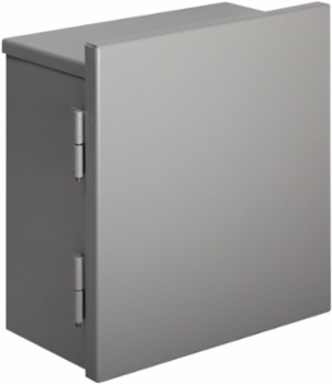

Wiegmann LOH121006 NEMA 3R Lift-Off Hinge 12X10X6 Carbon Steel - Gray
- MPN: LOH121006
- UPC: 786725407354
- PPN: HBL-LOH121006
- UNSPSC: 39121324
CAD
$532.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NEMA 3R Lift-Off Hinge 12X10X6 Carbon Steel - Gray
Features
- Bodies and doors are fabricated from carbon steel
- Integrated drip cap
- Door is hinged on the left side with lift-off hinges
- No knockouts

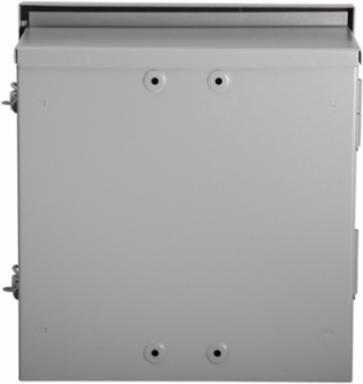

- Mounting holes on the back of the enclosure
- Doors are securely fastened with a padlockable draw latch
- Grounding provisions are provided
- ANSI-61 gray polyester powder inside and out
- Optional back panels are painted with while polyester powder
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Application
- Designed for use as wiring boxes and junction boxes. Provides protection in;outdoor installations against rain, sleet, and snow, or indoors against dripping water.
- Cubic Capacity
- 720 cu.in
- Height
- 12 in
- Standard
- UL Listed;CSA Listed
- Weight
- 11 lb.
- Class Code
- P01
- Harmonization Code
- 7326908688
- Sub Class Code
- P01P002
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 11.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Mounting MethodWall Mount
ColorGray
Depth6 in
NEMA RatingNEMA 3R
Width10 in
Nema RatingNEMA 3R
Freight Class Code06316009
Image Actual Or RepresentativeR
MaterialCarbon Steel
BOX SIZE12.800x20.400x12.500 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725407354
Pallet Height42.900 in
Pallet Weight250.560 lb.
NAICS Code3359326101
Certifications
- Certified Listed
- UL Listed;CSA Listed
