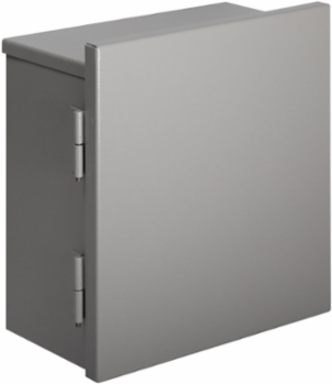

Wiegmann LOH242408 NEMA 3R Lift-Off Hinge 24X24X8 Carbon Steel - Gray
- MPN: LOH242408
- UPC: 786725407705
- PPN: HBL-LOH242408
- UNSPSC: 39121324
CAD
$729.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

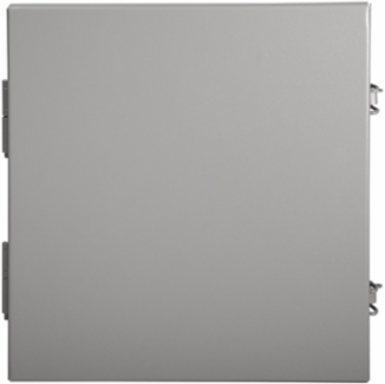

NEMA 3R Lift-Off Hinge 24X24X8 Carbon Steel - Gray
Features
- Bodies and doors are fabricated from carbon steel
- Integrated drip cap

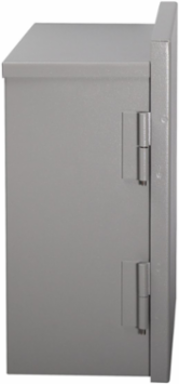

- Door is hinged on the left side with lift-off hinges
- No knockouts

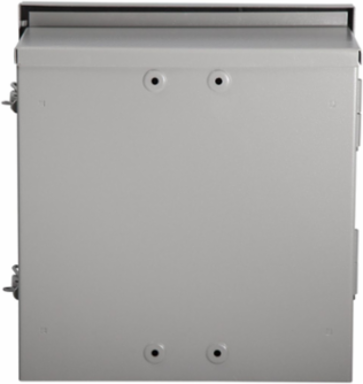

- Mounting holes on the back of the enclosure
- Doors are securely fastened with a padlockable draw latch
- Grounding provisions are provided
- ANSI-61 gray polyester powder inside and out
- Optional back panels are painted with while polyester powder
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Application
- Designed for use as wiring boxes and junction boxes. Provides protection in;outdoor installations against rain, sleet, and snow, or indoors against dripping water.
- Cubic Capacity
- 4608 cu.in
- Height
- 24 in
- Standard
- UL Listed;CSA Listed
- Weight
- 51 lb.
- Class Code
- P01
- Harmonization Code
- 7326908688
- Sub Class Code
- P01P002
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 51.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Mounting MethodWall Mount
ColorGray
Depth8 in
NEMA RatingNEMA 3R
Width24 in
Nema RatingNEMA 3R
Freight Class Code06316009
Image Actual Or RepresentativeR
MaterialCarbon Steel
BOX SIZE9.000x26.500x26.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725407705
Pallet Height49.500 in
Pallet Weight280.000 lb.
NAICS Code3359326101
Certifications
- Certified Listed
- UL Listed;CSA Listed
