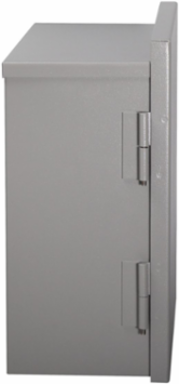

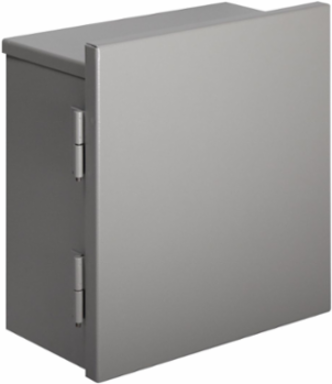

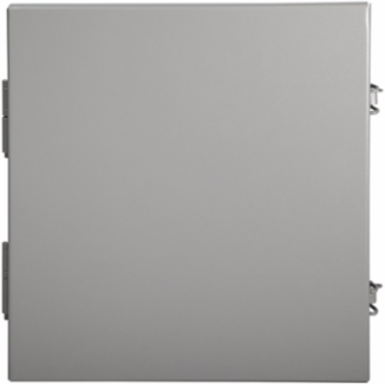

Wiegmann LOH161606 NEMA 3R Lift-Off Hinge 16X16X6 Carbon Steel - Gray
- MPN: LOH161606
- UPC: 786725407507
- PPN: HBL-LOH161606
- UNSPSC: 39121324
CAD
$480.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NEMA 3R Lift-Off Hinge 16X16X6 Carbon Steel - Gray
Features
- Bodies and doors are fabricated from carbon steel
- Integrated drip cap
- Door is hinged on the left side with lift-off hinges
- No knockouts

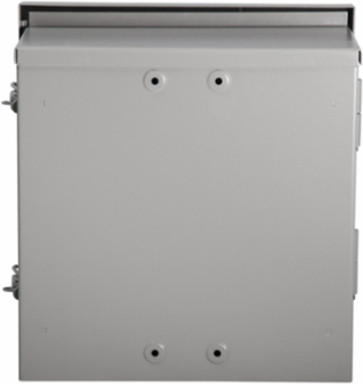

- Mounting holes on the back of the enclosure
- Doors are securely fastened with a padlockable draw latch
- Grounding provisions are provided
- ANSI-61 gray polyester powder inside and out
- Optional back panels are painted with while polyester powder
Documentation & Downloads
Specifications
Key Specifications
- Mounting Method
- Wall Mount
- Color
- Gray
- Depth
- 6 in
- NEMA Rating
- NEMA 3R
- Width
- 16 in
- Nema Rating
- NEMA 3R
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- Material
- Carbon Steel
- BOX SIZE
- 8.000x18.000x18.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725407507
- Pallet Height
- 48.000 in
- Pallet Weight
- 320.000 lb.
- NAICS Code
- 3359326101
ApplicationDesigned for use as wiring boxes and junction boxes. Provides protection in;outdoor installations against rain, sleet, and snow, or indoors against dripping water.
Cubic Capacity1536 cu.in
Height16 in
StandardUL Listed;CSA Listed
Weight16 lb.
Class CodeP01
Harmonization Code7326908688
Sub Class CodeP01P002
Base Unit of MeasureEA
Carton - Gross Weight per Pack16.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Certified Listed
- UL Listed;CSA Listed
