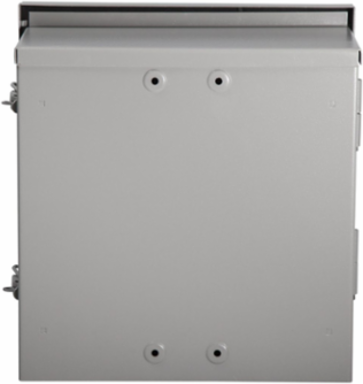

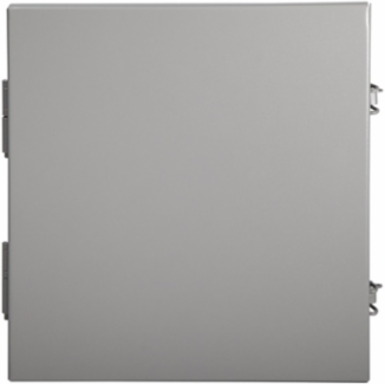

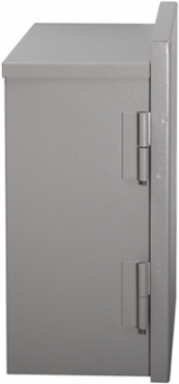

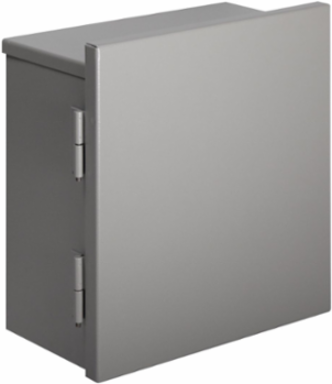

Wiegmann LOH202008 NEMA 3R Lift-Off Hinge 20X20X8 Carbon Steel - Gray

NEMA 3R Lift-Off Hinge 20X20X8 Carbon Steel - Gray
NEMA 3R Lift-Off Hinge 20X20X8 Carbon Steel - Gray
NEMA 3R Lift-Off Hinge 20X20X8 Carbon Steel - Gray
NEMA 3R Lift-Off Hinge 20X20X8 Carbon Steel - Gray
  • MPN: LOH202008
  • UPC: 786725407606
  • PPN: HBL-LOH202008

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$511.08/ EA

Description

NEMA 3R Lift-Off Hinge 20X20X8 Carbon Steel - Gray

Features

  • Bodies and doors are fabricated from carbon steel
  • Integrated drip cap
  • Door is hinged on the left side with lift-off hinges
  • No knockouts
  • Mounting holes on the back of the enclosure
  • Doors are securely fastened with a padlockable draw latch
  • Grounding provisions are provided
  • ANSI-61 gray polyester powder inside and out
  • Optional back panels are painted with while polyester powder

Specifications

Certifications

Certified Listed
UL Listed;CSA Listed
EU RoHS IndicatorNo

Specifications

Color
Gray
Each - Width
22.000 in
Mounting Method
Wall Mount
Width
20 in
Nema Rating
NEMA 3R
Freight Class Code
06316009
Image Actual Or Representative
R
Material
Carbon Steel
BOX SIZE
9.000x22.500x22.000 (in)
Carton - Number of Sub Packs
1
Carton - SCC-14 Next Lower Level Sub Pack
00786725407606
Pallet Height
49.500 in
Pallet Weight
335.000 lb.
Depth8 in
Height20 in
Weight38 lb.
ApplicationDesigned for use as wiring boxes and junction boxes. Provides protection in;outdoor installations against rain, sleet, and snow, or indoors against dripping water.
Class CodeP01
Harmonization Code7326908688
Sub Class CodeP01P002
Base Unit of MeasureEA
Carton - Gross Weight per Pack38.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length48.000 in
Pallet Width40.000 in
