Wiegmann LOH121206 NEMA 3R Lift-Off Hinge 12X12X6 Carbon Steel - Gray
- MPN: LOH121206
- UPC: 786725407408
- PPN: HBL-LOH121206
- UNSPSC: 39121324
CAD
$523.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

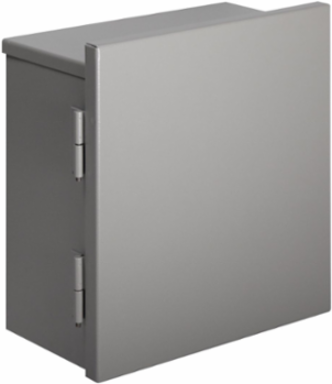

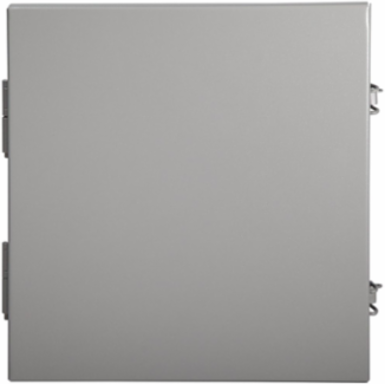

NEMA 3R Lift-Off Hinge 12X12X6 Carbon Steel - Gray
Features
- Bodies and doors are fabricated from carbon steel
- Integrated drip cap

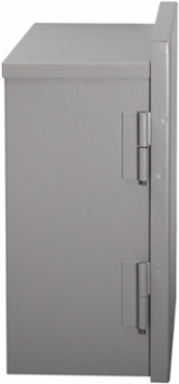

- Door is hinged on the left side with lift-off hinges
- No knockouts

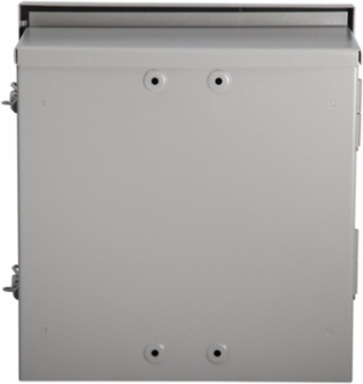

- Mounting holes on the back of the enclosure
- Doors are securely fastened with a padlockable draw latch
- Grounding provisions are provided
- ANSI-61 gray polyester powder inside and out
- Optional back panels are painted with while polyester powder
Documentation & Downloads
Specifications
Key Specifications
- Mounting Method
- Wall Mount
- Color
- Gray
- Depth
- 6 in
- NEMA Rating
- NEMA 3R
- Width
- 12 in
- Class Code
- P01
- Harmonization Code
- 7326908688
- Sub Class Code
- P01P002
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 12.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
ApplicationDesigned for use as wiring boxes and junction boxes. Provides protection in;outdoor installations against rain, sleet, and snow, or indoors against dripping water.
Cubic Capacity864 cu.in
Height12 in
StandardUL Listed;CSA Listed
Nema RatingNEMA 3R
Freight Class Code06316009
Image Actual Or RepresentativeA
MaterialCarbon Steel
BOX SIZE8.650x25.250x17.450 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725407408
Pallet Height39.100 in
Pallet Weight159.480 lb.
NAICS Code3359326101
Certifications
- Certified Listed
- UL Listed;CSA Listed
