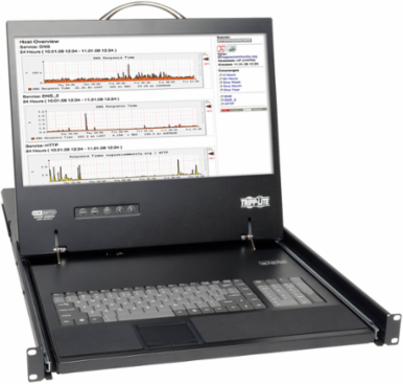

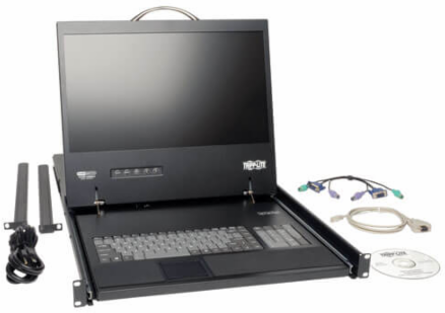

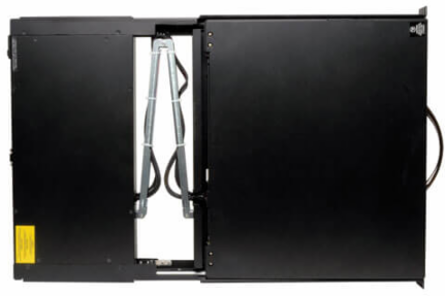

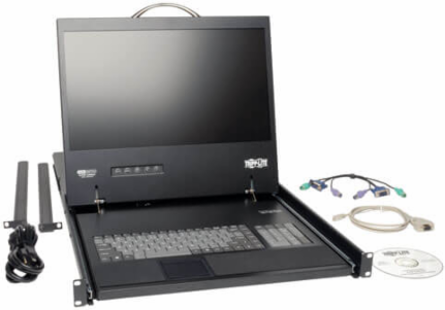

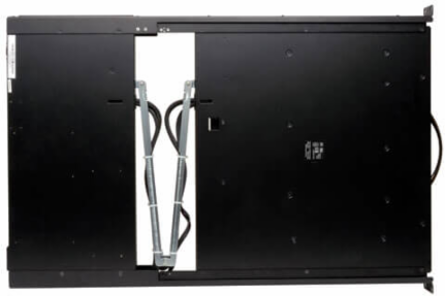

Tripp Lite B070-016-19 NetCommander 16-Port Cat5 1U Rack-Mount KVM Switch with 19 Inch LCD, 1366 x 768 Resolution
- MPN: B070-016-19
- UPC: 037332137883
- PPN: TRP-B070-016-19
CAD
$3857.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Control up to 16 computers with one Cat5 KVM switch with integrated console. This KVM switch is a smart solution for efficient server control that saves rack space and money. Low-cost Cat5 cabling lets you locate servers up to 100 ft. from switch.
Features
- Occupies just 1U of space in a rack-mountable drawer
- Low-cost Cat5 cabling allows longer distances, reduces cable clutter
- 19” LCD screen supports video resolution up to 1366 x 768
- Simplifies IT tasks with easy switching between all 16 ports
- Expandable - Cascade a second level of KVM switches to control up to 256 servers from a single station using Tripp Lite's B072-008-1, B072-008-1A, B072-016-1 and/or B072-016-1A to increase the number of ports.
- TAA compliant for GSA Schedule purchases
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
| Ports | 16 |
|---|---|
| Max Distance | 100 ft (30.5m) |
| Frequency | 50/60 Hz |
| Input Current | 1.4A (120V), 0.8A (230V) |
| Dimensions (H x W x D) | 1.7 x 17.7 x 28.4 in |
| Material | SECC Steel (Electrogalvanized, Cold rolled, Coil) |
| Storage Temperature | -40 to 158 F (-40 to 70 C) |
| PC/Server Connections | PS/2; USB; VGA |
| Port Selection | Hotkey; On-Screen Display (OSD) |
| Console Screen Aspect Ratio | 16:9 |
| Certifications | UL 60950-1, CAN/CSA, FCC Part 15 Class A, CE, IEC 60950-1, RoHS, REACH, TAA |
| Max CPU | 256 |
|---|---|
| Voltage | 100; 110; 120; 127; 200; 208; 220; 230; 240 V |
| Power Consumption | 30W (Line Mode), 5W (Standby) |
| Console Screen Size | 19 in |
| Weight | 31 lbs (14.06 kg) |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Humidity | 0% to 80% RH, Non-Condensing |
| Interface | PS/2, USB, VGA |
| Autoscan | Yes, Variable duration |
| Rackmountable | Yes |
| Color | Black |
