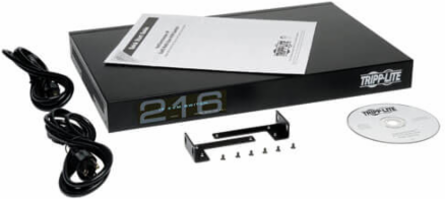

Tripp Lite B072-016-IP2 16-Port Cat5 KVM Switch with IP Remote Access, 1U Rack-Mount, 1920x1080 Resolution
- MPN: B072-016-IP2
- UPC: 037332177278
- PPN: TRP-B072-016-IP2
CAD
$3666.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Control up to 16 computers from virtually anywhere with one Cat5 KVM switch. This KVM switch with IP remote access is a smart solution for efficient server control. Low-cost Cat5 cables let you locate servers up to 100 ft. away.
Features
- 16 ports provide control of computers/servers locally or via your network or the Internet
- Occupies just 1U of rack space
- Low-cost Cat5 cabling allows longer distances, reduces cable clutter
- Simultaneous support for 3 users – 1 local, 2 remote
- Dual Ethernet ports and power supplies assure uninterrupted remote access
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
- TAA Compliant
Documentation & Downloads
Specifications
Additional
| Ports | 16 |
|---|---|
| Max Supported Video Resolution | Local: 1920 x 1200 @ 60 Hz; Remote: 1920 x 1080 @ 60 Hz |
| Input Voltage | 100-240V (100; 110; 120; 127; 200; 208; 220; 230; 240 VAC) |
| Input Frequency | 50/60 Hz |
| BTU Output | 171 BTU/hr |
| Weight | 7.5 lbs |
| Mounting | 19 in. rack mount |
| Color | Black |
| Storage Temperature | -40 to 158 F (-40 to 70 C) |
| Power Input Receptacle | IEC-320-C14 |
| USB Specification | USB 2.0 (up to 480 Mbps) |
| Console Interfaces | USB keyboard/mouse, VGA monitor |
| Authentication | RADIUS, LDAP/S, TLS 1.2 |
| Virtual Media Speed | Up to 12 Mbps (with B078-101-USB2) |
| Compliance | TAA Compliant |
| Number of Users | 3 |
|---|---|
| Network Speed | 10/100 Mbps |
| Input Current | 0.7A @ 120V, 0.3A @ 230V |
| Power Consumption | 50 W |
| Dimensions (H x W x D) | 1.7 x 17.3 x 11 in |
| Rack Size | 1U |
| Material | SECC Steel (Electrogalvanized, Cold Rolled Coil) |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Relative Humidity | 0% to 80% RH, Non-Condensing |
| Dual Power Supplies | Yes |
| Number of Serial Ports | 2 |
| Server Interfaces | PS/2, USB, VGA |
| Remote Access | IP Remote Access, Java-based application, non-browser client |
| Certifications | UL 60950-1, CAN/CSA, FCC Part 15 Class A, CE, IEC 60950-1, RoHS, REACH |
| Warranty | 3-year limited warranty |
