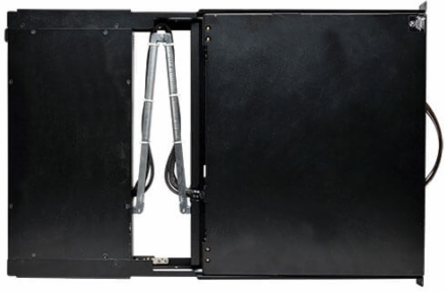

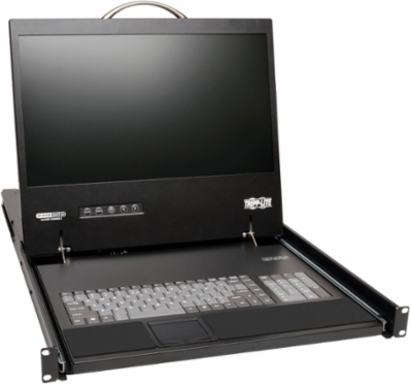

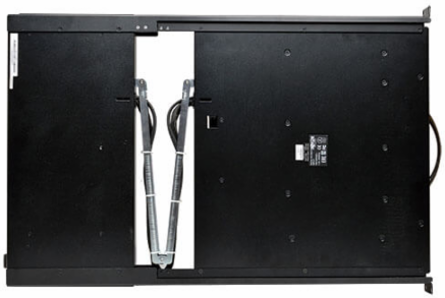

Tripp Lite B070-008-19-IP 8-Port Cat5 KVM Switch with 19 Inch LCD, 1U Rack-Mount, Remote Access
- MPN: B070-008-19-IP
- UPC: 037332181879
- PPN: TRP-B070-008-19-IP
CAD
$3777.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Control up to 8 computers from virtually anywhere with one Cat5 KVM switch with integrated console. This KVM switch with IP remote access is a smart solution for efficient server control. Low-cost Cat5 cables let you locate servers up to 100 ft. away.
Features
- Control computers/servers locally or via LAN, WAN or Internet
- Occupies just 1U of space in a rack-mountable drawer
- Low-cost Cat5 cabling allows longer distances, reduces cable clutter
- 19” LCD screen supports video resolutions up to 1366 x 768
- Simultaneous support for 2 users – 1 local, 1 remote
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface
- Fast Virtual Media KVM System patented under Pat. No. US 9,417,720
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
- Ports
- 8
- Network Speed
- 10/100 Mbps
- Operating Temperature
- 32 to 104 F (0 to 40 C)
- Input Current
- 1.2A at 120V, 0.7A at 230V
- USB Specification
- USB 2.0 (up to 480 Mbps)
- Rack Mount
- Yes, 1U
- Relative Humidity
- 0% to 80% RH, Non-Condensing
- User Access
- 1 local + 1 remote user simultaneously, up to 5 users share session
- Virtual Media Speed
- Up to 12 Mbps (using B078-101-USB2)
- Weight
- 29 lbs (13.15 kg)
- Material
- SECC Steel (Electrogalvanized, Cold rolled, Coil)
- Recommended Cable
- Cat5e/6/6a cables
- Security Features
- Multi-level password protection, TLS 1.2, SSL certificates
- LED Indicators
- Green (CAPS LOCK, SCROLL LOCK, NUM LOCK)
Video ResolutionConsole: 1366 x 768 @ 60Hz; Remote: 1920 x 1080 @ 60Hz
Power Consumption30W (line mode), 5W (standby)
Input Voltage100; 110; 120; 127; 200; 208; 220; 230; 240 VAC
AuthenticationRADIUS; LDAPS
Console Screen Size19 in.
Storage Temperature Range-40 to 158 F (-40 to 70 C)
Power Input ReceptacleIEC-320-C14
Cable DistanceUp to 100 ft Cat5e/6/6a cabling
Serial Ports2
Dimensions1.7 x 17.4 x 28.4 in. (H x W x D)
ConnectivityPS/2, USB, VGA, RJ45
ComplianceUL 60950-1, CAN/CSA, FCC Part 15 Class A, CE, IEC 60950-1, RoHS, REACH, Federal Trade Agreements Act (TAA)
Operating Systems CompatibleWindows, Linux
ColorBlack
