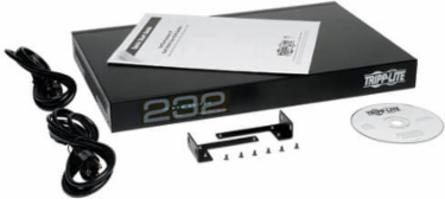

Tripp Lite B072-032-IP2-K 32-Port KVM Switch with IP Remote Access, Supports 3 Users, Rack-Mountable
- MPN: B072-032-IP2-K
- UPC: 037332181442
- PPN: TRP-B072-032-IP2-K
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Control up to 32 computers from virtually anywhere with one Cat5 KVM switch. This KVM switch with IP remote access is a smart solution for efficient server control. Low-cost Cat5 cables let you locate servers up to 100 ft. away.
Features
- 32 ports provide control of computers/servers locally or via your network or the Internet
- Occupies just 1U of rack space
- Low-cost Cat5 cabling allows longer distances, reduces cable clutter
- Simultaneous support for 3 users – 1 local, 2 remote
- Includes 16 USB Server Interface dongles for connecting computers or servers
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
Documentation & Downloads
Specifications
Additional
| Ports | 32 |
|---|---|
| Input Voltage Compatibility | 100-240V |
| Input Current | 0.7A @ 120V, 0.3A @ 230V |
| BTU Output | 171 BTU/Hr |
| Network Speed | 10/100 Mbps |
| Redundancy | Dual Power Inputs |
| Rackmountable | Yes, 1U |
| Console Monitor Interface | VGA |
| Console Keyboard and Mouse Interface | USB |
| Side B Connectors | (32) RJ45 Female |
| Virtual Media Speed | Up to 12 Mbps (using B078-101-USB2) |
| Network Support | IP Remote Access with Java-based and non-browser clients |
| Color | Black |
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
| Certifications | UL 60950-1, CAN/CSA, FCC Part 15 Class A, CE, IEC 60950-1, RoHS, REACH |
| Number of Users | 3 (1 local, 2 remote) |
|---|---|
| Input Frequency | 50/60 Hz |
| Power Consumption | 50 Watts |
| Max Supported Video Resolution | Local: 1920 x 1200 @ 60 Hz; Remote: 1920 x 1080 @ 60 Hz |
| Power Input Receptacle | IEC-320-C14 |
| Authentication Supported | RADIUS, LDAPS |
| Computer Monitor Interface | VGA |
| Computer Keyboard and Mouse Interface | PS/2, USB |
| Side A Connectors | (3) USB A Female, HD15 Female, (4) RJ45 Female |
| USB Specification | USB 2.0 (up to 480 Mbps) |
| Port Selection | Hotkey, OSD |
| Material of Construction | SECC (Steel, Electrogalvanized, Cold rolled, Coil) |
| Relative Humidity | 0% to 80% RH, Non-Condensing |
| Storage Temperature Range | -40 to 158 F (-40 to 70 C) |
| Warranty | 3-year limited |
