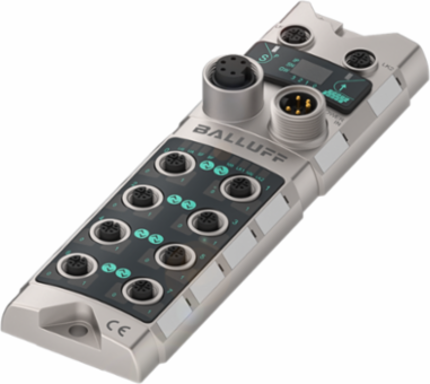

Balluff BNI PNT-508-105-Z015 Profinet Network Block, 16 Digital Inputs, IP67, 68 x 37.9 x 224 mm
- MPN: BNI PNT-508-105-Z015
- PPN: BAL-BNI005H
CAD
$1282.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Profinet Network Block, 16 Digital Inputs, IP67, 68 x 37.9 x 224 mm
Documentation & Downloads
Specifications
Additional
| Digital Inputs | 16x PNP, Type 3 |
|---|---|
| Operating voltage | 18...30.2 VDC |
| Dimensions | 68 x 37.9 x 224 mm |
| IP rating | IP67 |
| Display | yes |
| Interface | Profinet I/O |
| Connection (supply voltage IN) | 7/8"-Male, 5-pin |
| Connection (COM 1) | M12x1-Female, 4-pin, D-coded |
| Current sum UA, actuator | 9.0 A |
| Digital outputs | 16x PNP |
| IO-Link version | 1.1 |
| Country of Origin | China |
| Output current max. | 2 A short-circuit proof and overload-proof |
|---|---|
| Ambient temperature | -5...70 C |
| Housing material | Zinc, Die casting |
| BG certified | yes |
| Configurable inputs/outputs | yes |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded |
| Connection (supply voltage OUT) | 7/8"-Female, 5-pin |
| Connection (COM 2) | M12x1-Female, 4-pin, D-coded |
| Current sum US, sensor | 9.0 A |
| Port-class | Type A |
| Auxiliary interfaces | 8x IO-Link |
