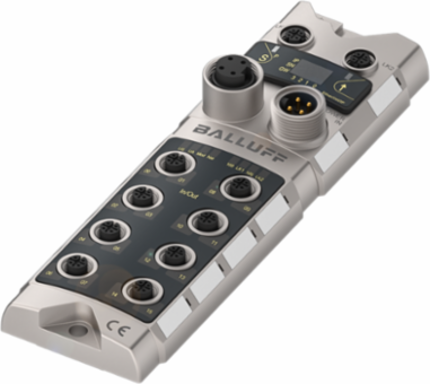

Balluff BNI EIP-302-105-Z015 Ethernet/IP Network Block, 16 Digital Inputs, IP67, 68 x 37.9 x 224 mm
Balluff BNI EIP-302-105-Z015 Ethernet/IP Network Block, 16 Digital Inputs, IP67, 68 x 37.9 x 224 mm
- MPN: BNI EIP-302-105-Z015
- PPN: BAL-BNI004F
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$524.87/ EA
Description
The Network Blocks for Ethernet/IP by Balluff are engineered for robust industrial connectivity, featuring 16 PNP digital inputs and outputs that ensure reliable communication in demanding environments. With an operating voltage range of 18 to 30.2 VDC and a durable zinc die-cast housing, this device is built to withstand harsh conditions, boasting an IP67 rating for dust and water resistance. Its versatile connectivity options, including multiple M12 connections, make it easy to integrate into existing systems, while the configurable inputs and outputs provide flexibility for various applications. Designed to operate in ambient temperatures from -5 to 70 °C, this network block is a reliable choice for enhancing your industrial network infrastructure.
Specifications
Specifications
- Country of Origin
- China
- Operating voltage Ub
- 18...30.2 VDC
- Connection (COM 2)
- M12x1-Female, 4-pin, D-coded
- Connection (supply voltage OUT)
- 7/8"-Female, 4-pin
- Digital inputs
- 16x PNP, Type 2
- Configurable inputs/outputs
- yes
- Current sum US, sensor
- 9.0 A
- Housing material
- Zinc, Die casting
- Ambient temperature
- -5...70 °C
InterfaceEtherNet/IP
Connection (COM 1)M12x1-Female, 4-pin, D-coded
Connection (supply voltage IN)7/8"-Male, 4-pin
Connection slots8x M12x1-Female, 5-pin, A-coded
Digital outputs16x PNP
Output current max.2 A
Current sum UA, actuator9.0 A
Dimension68 x 37.9 x 224 mm
IP rating per IEC 60529IP67
Downloads
