Balluff

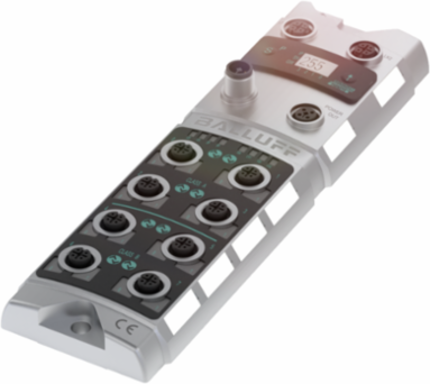

Balluff BNI PNT-538-105-Z063 Profinet Network Block, 8x IO-Link, IP67, 68 x 31.7 x 224 mm

Profinet Network Block, 8x IO-Link, IP67, 68 x 31.7 x 224 mm
  • MPN: BNI PNT-538-105-Z063
  • PPN: BAL-BNI00AZ

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$699.03/ EA

Specifications

Specifications

Country of Origin
Hungary
Fast Start-Up (FSU)
yes
Display
yes
Connection (COM 2)
M12x1-Female, 4-pin, D-coded
Connection (supply voltage OUT)
M12x1-Female, 4-pin, T-coded
Digital inputs
12x PNP, Type 3
Configurable inputs/outputs
yes
Current sum US, sensor
12.0 A
Housing material
Zinc, Die casting
Ambient temperature
-5...70 °C
Auxiliary interfaces
8x IO-Link
Port-class
Type A (4x) + Type B (4x)
InterfaceProfinet I/O
Operating voltage Ub18...30.2 VDC
Connection (COM 1)M12x1-Female, 4-pin, D-coded
Connection (supply voltage IN)M12x1-Male, 4-pin, T-coded
Connection slots8x M12x1-Female, 5-pin, A-coded
Digital outputs12x PNP
Output current max.2 A short-circuit proof and overload-proof
Current sum UA, actuator12.0 A
Dimension68 x 31.7 x 224 mm
IP rating per IEC 60529IP67
IO-Link version1.1
BG certifiedyes
