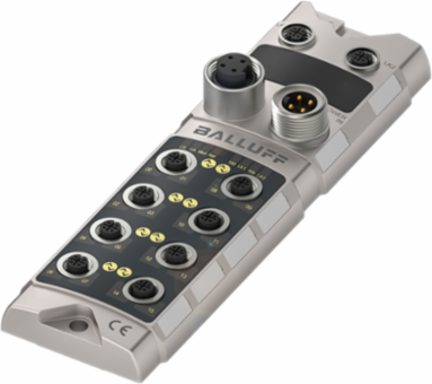

Balluff BNI EIP-508-005-Z015-013 Ethernet/IP Network Block, 9.0 A, IP67, 16 Digital Inputs, Zinc Housing
Balluff BNI EIP-508-005-Z015-013 Ethernet/IP Network Block, 9.0 A, IP67, 16 Digital Inputs, Zinc Housing
- MPN: BNI EIP-508-005-Z015-013
- PPN: BAL-BNI00HM
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$793.43/ EA
Description
Designed for robust industrial applications, the network blocks for Ethernet/IP by Balluff provide a reliable solution for connecting sensors and actuators in a seamless manner. With a current capacity of up to 9.0 A for both sensors and actuators, this device supports a wide operating voltage range from 18 to 30.2 VDC, ensuring compatibility with various systems. The unit features 16 digital inputs and outputs, all PNP type, and is equipped with configurable I/O options, making it highly versatile for different automation needs. Constructed from durable die-cast zinc, it boasts an IP67 rating, allowing for use in demanding environments with ambient temperatures ranging from -5 to 70 °C. With multiple connection options, including M12 and 7/8" interfaces, this network block is designed to facilitate easy integration into existing setups while ensuring optimal performance and reliability.
Specifications
Specifications
- Country of Origin
- Hungary
- Operating voltage Ub
- 18...30.2 VDC
- Connection (COM 2)
- M12x1-Female, 4-pin, D-coded
- Connection (supply voltage OUT)
- 7/8"-Female, 4-pin
- Digital inputs
- 16x PNP, Type 3
- Configurable inputs/outputs
- yes
- Current sum US, sensor
- 9.0 A
- Housing material
- Zinc, Die casting
- Ambient temperature
- -5...70 °C
- Auxiliary interfaces
- 8x IO-Link
- Port-class
- Type A
InterfaceEtherNet/IP
Connection (COM 1)M12x1-Female, 4-pin, D-coded
Connection (supply voltage IN)7/8"-Male, 4-pin
Connection slots8x M12x1-Female, 5-pin, A-coded
Digital outputs16x PNP
Output current max.2 A short-circuit proof and overload-proof
Current sum UA, actuator9.0 A
Dimension68 x 37.9 x 224 mm
IP rating per IEC 60529IP67
IO-Link version1.1
