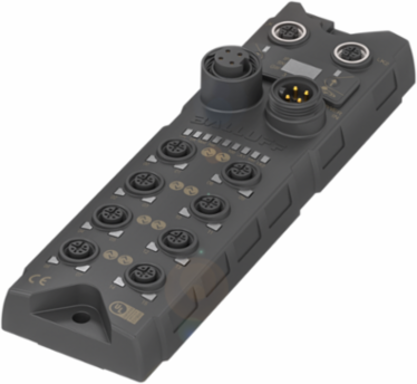

Balluff BNI EIP-508-105-R015 Ethernet/IP Network Block, 16 Digital Inputs, IP67, 8 Connection Slots
- MPN: BNI EIP-508-105-R015
- PPN: BAL-BNI008M
CAD
$1095.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ethernet/IP Network Block, 16 Digital Inputs, IP67, 8 Connection Slots
Documentation & Downloads
Specifications
Additional
| Digital Inputs | 16x PNP, Type 3 |
|---|---|
| Output Current Max. | 2 A short-circuit proof and overload-proof |
| Current Sum Actuator | 9.0 A |
| Dimension | 68 x 42.9 x 226 mm |
| Connection (Supply Voltage IN) | 7/8"-Male, 4-pin |
| Connection (COM 1) | M12x1-Female, 4-pin, D-coded |
| Interface | EtherNet/IP |
| Auxiliary Interfaces | 8x IO-Link |
| Housing Material | PPS |
| Digital Outputs | 16x PNP |
| Country of Origin | Hungary |
| Operating Voltage | 18...30.2 VDC |
|---|---|
| Current Sum Sensor | 9.0 A |
| Ambient Temperature | -5...70 C |
| Connection Slots | 8x M12x1-Female, 5-pin, A-coded |
| Connection (Supply Voltage OUT) | 7/8"-Female, 4-pin |
| Connection (COM 2) | M12x1-Female, 4-pin, D-coded |
| IO-Link Version | 1.1 |
| IP Rating | IP67 per IEC 60529 |
| Configurable Inputs/Outputs | Yes |
| Port-Class | Type A |
