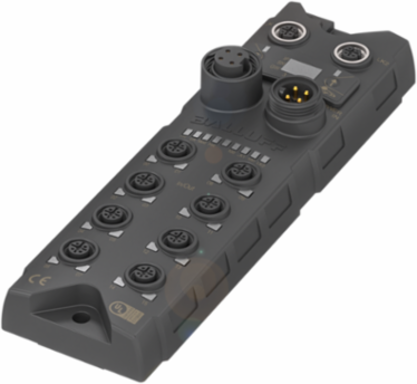

Balluff BNI EIP-302-105-R015 Ethernet/IP Network Block, 68 x 42.9 x 226 mm, IP67, 2 A Output
Balluff BNI EIP-302-105-R015 Ethernet/IP Network Block, 68 x 42.9 x 226 mm, IP67, 2 A Output
- MPN: BNI EIP-302-105-R015
- PPN: BAL-BNI008P
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$883.54/ EA
Description
The Network Blocks for Ethernet/IP by Balluff represent a robust solution for industrial connectivity, designed to streamline communication and control in automation systems. With configurable inputs and outputs, this device supports a maximum output current of 2 A and accommodates a variety of connections, including multiple M12x1-Female ports. Built with a durable PPS housing and an IP67 rating, it ensures reliable performance in challenging environments, operating efficiently within a temperature range of -5 to 70 °C. The integration of 16 digital inputs and outputs enhances its versatility, making it an essential component for modern industrial applications.
Specifications
Specifications
- Country of Origin
- Hungary
- Operating voltage Ub
- 18...30.2 VDC
- Connection (COM 2)
- M12x1-Female, 4-pin, D-coded
- Connection (supply voltage OUT)
- 7/8"-Female, 4-pin
- Digital inputs
- 16x PNP, Type 3
- Configurable inputs/outputs
- yes
- Current sum US, sensor
- 9.0 A
- Housing material
- PPS
- Ambient temperature
- -5...70 °C
InterfaceEtherNet/IP
Connection (COM 1)M12x1-Female, 4-pin, D-coded
Connection (supply voltage IN)7/8"-Male, 4-pin
Connection slots8x M12x1-Female, 5-pin, A-coded
Digital outputs16x PNP
Output current max.2 A
Current sum UA, actuator9.0 A
Dimension68 x 42.9 x 226 mm
IP rating per IEC 60529IP67
Downloads
