Documentation & Downloads

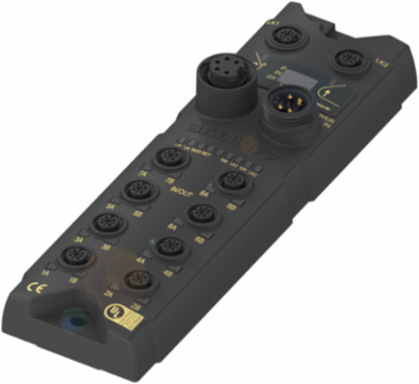

Balluff BNI EIP-302-104-R015 Network blocks for Ethernet/IP BNI EIP-302-104-R015
- MPN: BNI EIP-302-104-R015
- PPN: BAL-BNI00AN
CAD
$1333.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
High efficiency is only feasible with an optimized network. We offer a comprehensive Ethernet/IP line of products for your high-efficiency system. Ethernet/IP is a worldwide recognized standard for network technology. and has replaced DeviceNet in many areas. The technology based on Ethernet is significantly faster and enables the integration of drive technology.
Documentation & Downloads
Specifications
Key Specifications
- Principle of operation
- Active splitter
- Operating voltage Ub
- 18-30.2 VDC
- Connection (COM 2)
- M12x1-Female, 4-pin, D-coded
- Connection (supply voltage OUT)
- 7/8"-Female, 4-pin
- Digital inputs
- 16x PNP, Type 3
- Configurable inputs/outputs
- yes
- Current sum UA, actuator
- 9.0 A
- Dimension
- 68 x 42.9 x 226 mm
- IP rating
- IP67
InterfaceEtherNet/IP
Connection (COM 1)M12x1-Female, 4-pin, D-coded
Connection (supply voltage IN)7/8"-Male, 4-pin
Connection ports8x M12x1-Female, 5-pin, A-coded
Digital outputs16x PNP
Output current max.2 A
Housing materialPPS
Ambient temperature-5-70 °C
