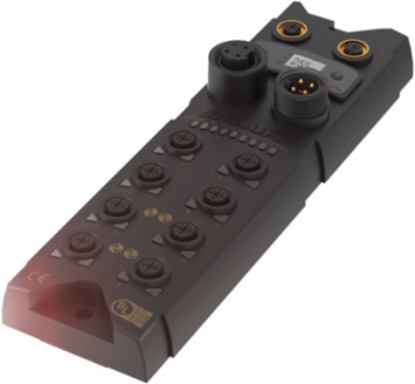

Balluff BNI EIP-502-105-R015 Network blocks for Ethernet/IP BNI EIP-502-105-R015
- MPN: BNI EIP-502-105-R015
- PPN: BAL-BNI008Z
CAD
$919.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
High efficiency is only feasible with an optimized network. We offer a comprehensive Ethernet/IP line of products for your high-efficiency system. Ethernet/IP is a worldwide recognized standard for network technology. and has replaced DeviceNet in many areas. The technology based on Ethernet is significantly faster and enables the integration of drive technology.
Documentation & Downloads
Specifications
Key Specifications
| Principle of operation | Active splitter |
|---|---|
| Operating voltage Ub | 18-30.2 VDC |
| Connection (COM 2) | M12x1-Female, 4-pin, D-coded |
| Connection (supply voltage OUT) | 7/8"-Female, 4-pin |
| Digital inputs | 16x PNP, Type 3 |
| Configurable inputs/outputs | yes |
| Current sum UA, actuator | 9.0 A |
| Dimension | 68 x 42.9 x 226 mm |
| IP rating | IP67 |
| IO-Link version | 1.1 |
| Interface | EtherNet/IP |
|---|---|
| Connection (COM 1) | M12x1-Female, 4-pin, D-coded |
| Connection (supply voltage IN) | 7/8"-Male, 4-pin |
| Connection ports | 8x M12x1-Female, 5-pin, A-coded |
| Digital outputs | 16x PNP |
| Output current max. | 2 A |
| Housing material | PPS |
| Ambient temperature | -5-70 °C |
| Auxiliary interfaces | 4x IO-Link |
| Port-class | Type A |
