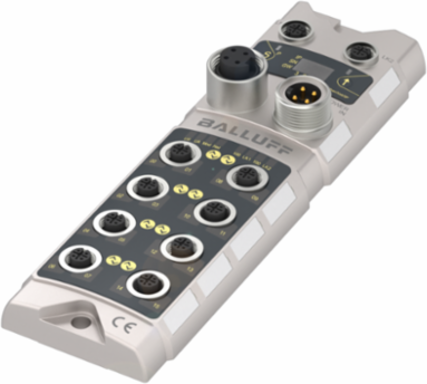

Balluff BNI EIP-508-105-Z015-C06 Ethernet/IP Network Block, 8x M12 Connections, IP67 Rating
Balluff BNI EIP-508-105-Z015-C06 Ethernet/IP Network Block, 8x M12 Connections, IP67 Rating
- MPN: BNI EIP-508-105-Z015-C06
- PPN: BAL-BNI007C
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1040.38/ EA
Description
Designed for robust industrial applications, the Network Block for Ethernet/IP from Balluff offers a reliable solution for connecting various devices in a networked environment. With a durable zinc die-cast housing and an IP67 rating, this device ensures protection against dust and water, making it suitable for challenging conditions. It features eight configurable digital inputs and outputs, supporting a maximum output current of 2 A, while providing seamless connectivity through M12 connectors. Operating within a temperature range of -5 to 70 °C, this network block is engineered for versatility and efficiency, making it an essential component for modern automation systems.
Specifications
Specifications
- Country of Origin
- China
- Operating voltage Ub
- 18...30.2 VDC
- Connection (COM 2)
- M12x1-Female, 4-pin, D-coded
- Connection (supply voltage OUT)
- 7/8"-Female, 4-pin
- Digital inputs
- 8x PNP, Type 3
- Configurable inputs/outputs
- yes
- Current sum US, sensor
- 9.0 A
- Housing material
- Zinc, Die casting
- Ambient temperature
- -5...70 °C
- Auxiliary interfaces
- 8x IO-Link
- Port-class
- Type A
InterfaceEtherNet/IP
Connection (COM 1)M12x1-Female, 4-pin, D-coded
Connection (supply voltage IN)7/8"-Male, 4-pin
Connection slots8x M12x1-Female, 5-pin, A-coded
Digital outputs8x PNP
Output current max.2 A
Current sum UA, actuator9.0 A
Dimension68 x 37.9 x 224 mm
IP rating per IEC 60529IP67
IO-Link version1.1
Downloads
Similar Products
CAD$1040.38/ EA
Loading add to cart quantity...
