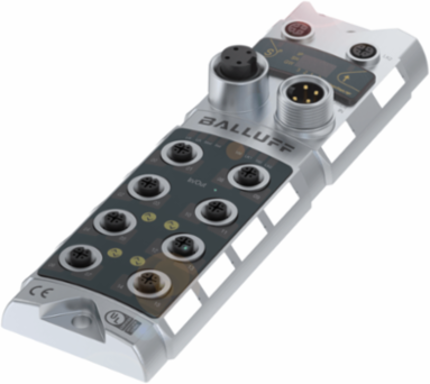

Balluff BNI EIP-502-105-Z015 Ethernet/IP Network Block, 2 A Output, IP67, 68 x 37.9 x 224 mm

MPN: BNI EIP-502-105-Z015
PPN: BAL-BNI004A

$888.90

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Designed for robust industrial applications, the Ethernet/IP network blocks from Balluff offer exceptional performance and reliability in demanding environments. With a wide operating temperature range from -5 to 70 C and an IP67 rating, these network blocks ensure durability and protection against dust and moisture. They feature multiple connection options, including 8 M12x1-Female ports and 4 IO-Link interfaces, providing flexible integration into existing systems. Capable of handling a maximum output current of 2 A and supporting a total actuator current of up to 9.0 A, this active splitter is ideal for managing complex automation tasks while maintaining efficient communication through the EtherNet/IP interface.

Documentation & Downloads

Specifications

Additional

Output Current Max.	2 A
Current Sum UA, Actuator	9.0 A
Transfer Rate	10-100 Mbit/s
Dimension	68 x 37.9 x 224 mm
Connection (Supply Voltage OUT)	7/8"-Female, 4-pin
Connection (COM 1)	M12x1-Female, 4-pin, D-coded
Mounting	2-hole screw mount
Digital Outputs	16x PNP
IO-Link Version	1.1
Port-class	Type A
Housing Material	Zinc, Die casting
Surface Protection	Cu 15 m, Ni 15 m

Operating Voltage	18-30.2 VDC
IP Rating	IP67
Ambient Temperature	-5 to 70 C
Connection (Supply Voltage IN)	7/8"-Male, 4-pin
Connection Ports	8x M12x1-Female, 5-pin, A-coded
Connection (COM 2)	M12x1-Female, 4-pin, D-coded
Digital Inputs	16x PNP, Type 2
Auxiliary Interfaces	4x IO-Link
Interface	EtherNet/IP
Principle of Operation	Active splitter
Gasket Material	FKM 75
Supported Protocol	Ethernet/IP
