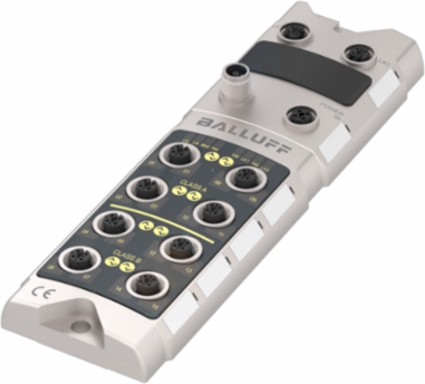

Balluff BNI EIP-538-005-Z063 Ethernet/IP Network Block, IP67, 8 PNP Outputs, 12 PNP Inputs
- MPN: BNI EIP-538-005-Z063
- PPN: BAL-BNI00E1
CAD
$675.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ethernet/IP Network Block, IP67, 8 PNP Outputs, 12 PNP Inputs
Documentation & Downloads
Specifications
Additional
| Output current max. | 2 A short-circuit proof and overload-proof |
|---|---|
| Digital outputs | 8x PNP |
| Ambient temperature | -5...70 C |
| Connection (COM 1) | M12x1-Female, 4-pin, D-coded |
| Connection (supply voltage IN) | M12x1-Male, 4-pin, T-coded |
| Dimension | 68 x 31.7 x 224 mm |
| IP rating | IP67 |
| Configurable inputs/outputs | yes |
| Current sum US, sensor | 12.0 A |
| Port-class | Type A (4x) + Type B (4x) |
| Operating voltage | 18...30.2 VDC |
|---|---|
| Digital inputs | 12x PNP, Type 3 |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded |
| Connection (COM 2) | M12x1-Female, 4-pin, D-coded |
| Connection (supply voltage OUT) | M12x1-Female, 4-pin, T-coded |
| Housing material | Zinc, Die casting |
| IO-Link version | 1.1 |
| Current sum UA, actuator | 12.0 A |
| Auxiliary interfaces | 8x IO-Link |
| Country of Origin | Hungary |
