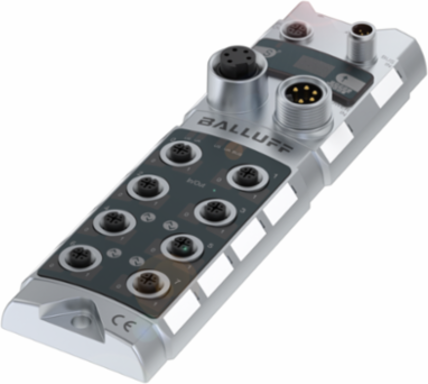

Balluff BNI PBS-502-101-Z001 Profibus Network Block, 16 Digital Outputs, IP67, -5 to 70 C
- MPN: BNI PBS-502-101-Z001
- PPN: BAL-BNI005R
CAD
$974.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Profibus Network Block, 16 Digital Outputs, IP67, -5 to 70 C
Documentation & Downloads
Specifications
Additional
| Digital Outputs | 16x PNP |
|---|---|
| IP Rating | IP67 |
| Current Sum (Sensor) | 9.0 A |
| Operating Voltage | 18 to 30.2 VDC |
| Connection (COM 1) | M12x1-Male, 5-pin, B-coded |
| Connection (Supply Voltage IN) | 7/8"-Male, 5-pin |
| Connection Slots | 8x M12x1-Female, 5-pin, A-coded |
| Configurable Inputs/Outputs | Yes |
| Port Class | Type A |
| IO-Link Version | 1.1 |
| Operating Temperature Range | -5 to 70 6C |
|---|---|
| Current Sum (Actuator) | 9.0 A |
| Output Current Max. | 2 A |
| Dimensions | 68 x 37.9 x 224 mm |
| Connection (COM 2) | M12x1-Female, 5-pin, B-coded |
| Connection (Supply Voltage OUT) | 7/8"-Female, 5-pin |
| Auxiliary Interfaces | 4x IO-Link |
| Digital Inputs | 16x PNP, Type 2 |
| Housing Material | Zinc, Die casting |
| Country of Origin | Hungary |
