Balluff

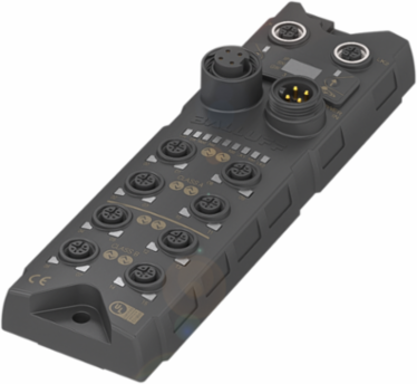

Balluff BNI EIP-538-105-R015 Ethernet/IP Network Block, 2 A Output, IP67, 12 Digital Inputs

Ethernet/IP Network Block, 2 A Output, IP67, 12 Digital Inputs
  • MPN: BNI EIP-538-105-R015
  • PPN: BAL-BNI00CY

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$921.41/ EA

Specifications

Specifications

Country of Origin
Hungary
Operating voltage Ub
18...30.2 VDC
Connection (COM 2)
M12x1-Female, 4-pin, D-coded
Connection (supply voltage OUT)
7/8"-Female, 4-pin
Digital inputs
12x PNP, Type 3
Configurable inputs/outputs
yes
Current sum US, sensor
9.0 A
Housing material
PPS
Ambient temperature
-5...70 °C
Auxiliary interfaces
8x IO-Link
Port-class
Type A (4x) + Type B (4x)
InterfaceEtherNet/IP
Connection (COM 1)M12x1-Female, 4-pin, D-coded
Connection (supply voltage IN)7/8"-Male, 4-pin
Connection slots8x M12x1-Female, 5-pin, A-coded
Digital outputs8x PNP
Output current max.2 A
Current sum UA, actuator9.0 A
Dimension68 x 42.9 x 226 mm
IP rating per IEC 60529IP67
IO-Link version1.1
