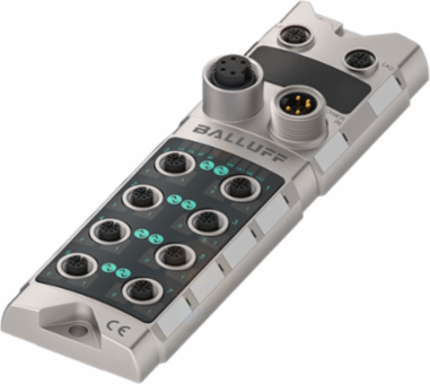

Balluff BNI PG3-508-0C5-Z015 Network blocks for Profinet - BNI00HL
- MPN: BNI PG3-508-0C5-Z015
- PPN: BAL-BNI00HL
CAD
$792.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Network blocks for Profinet - BNI00HL
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Hungary |
|---|---|
| Operating voltage Ub | 18...30.2 VDC |
| Connection (COM 1) | M12x1-Female, 4-pin, D-coded |
| Connection (supply voltage IN) | 7/8"-Male, 5-pin |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded |
| Digital outputs | 16x PNP |
| Output current max. | 2 A short-circuit proof and overload-proof |
| Current sum UA, actuator | 9.0 A |
| Dimension | 68 x 37.9 x 224 mm |
| IP rating per IEC 60529 | IP67 |
| IO-Link version | 1.1 |
| BG certified | no |
| Interface | Profinet I/O |
|---|---|
| Display | no |
| Connection (COM 2) | M12x1-Female, 4-pin, D-coded |
| Connection (supply voltage OUT) | 7/8"-Female, 5-pin |
| Digital inputs | 16x PNP, Type 3 |
| Configurable inputs/outputs | yes |
| Current sum US, sensor | 9.0 A |
| Housing material | Zinc, Die casting |
| Ambient temperature | -5...70 °C |
| Auxiliary interfaces | 8x IO-Link |
| Port-class | Type A |
