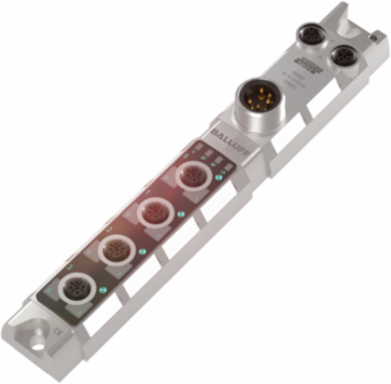

Balluff BNI PNT-507-005-Z040 Profinet Network Block, 8 Digital Inputs, IP67, 37 x 32.6 x 224 mm
- MPN: BNI PNT-507-005-Z040
- PPN: BAL-BNI0092
CAD
$635.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Profinet Network Block, 8 Digital Inputs, IP67, 37 x 32.6 x 224 mm
Documentation & Downloads
Specifications
Additional
- Digital Inputs
- 8x PNP, Type 3
- Output Current Max.
- 2 A short-circuit proof and overload-proof
- Current Sum Actuator
- 9.0 A
- Ambient Temperature Range
- -40...70 0C
- Type
- Profinet Network Block
- IO-Link Version
- 1.1
- Port Class
- Type A
- Dimensions
- 37 x 32.6 x 224 mm
- Connection (COM 2)
- M12x1-Female, 4-pin, D-coded
- Connection Slots
- 4x M12x1-Female, 5-pin, A-coded
- IP Rating
- IP67
- Country of Origin
- Hungary
Digital Outputs8x PNP
Operating Voltage18...30.2 VDC
Current Sum Sensor9.0 A
InterfaceProfinet I/O
Fast Start-Upyes
Configurable Inputs/Outputsyes
Auxiliary Interfaces4x IO-Link
Connection (COM 1)M12x1-Female, 4-pin, D-coded
Connection (Supply Voltage IN)7/8"-Male, 5-pin
Housing MaterialZinc, Die casting
BG Certifiedyes
