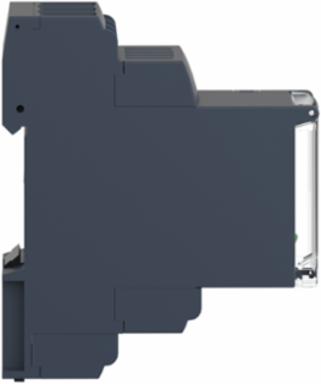

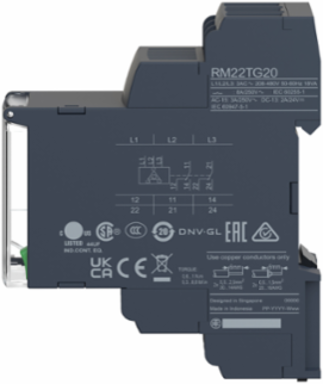

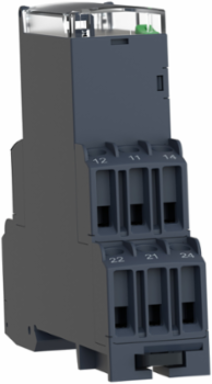

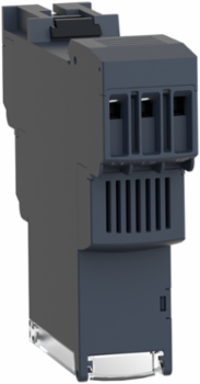

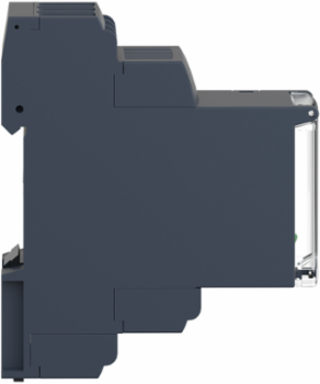

Schneider Electric RM22TG20 3-Phase Control Relay, 8A, 183-528V AC, 22.5mm Width

MPN: RM22TG20
PPN: SCH-RM22TG20

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$151.85

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony RM22TG control relay allows monitoring of power supply circuits in 3-phase networks. This modular 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Features

Part of the Harmony Control Relays range, the RM22TG20 is purpose-built to track both phase sequence (rotation direction) and phase failure (loss of two or more phases) across 3-phase networks. This instant power supply monitoring protects expensive downstream three-phase motors from running in reverse or single-phase, preventing catastrophic mechanical damage and coil burnouts
This self-powered monitoring module operates seamlessly over a broad measurement spectrum spanning 183 V to 528 V AC across 50/60 Hz networks. It naturally covers standard industrial infrastructure voltages like 208 V and 240 V allowing you to standardize on one inventory component for diverse multi-voltage panel projects.
The relay integrates a heavy-duty 2 C/O (changeover, DPDT) contact configuration with a maximum switching current of 8 A at 250 V AC. These independent, cadmium-free contacts provide plenty of switching capacity to simultaneously drop power to an upstream contactor coil and trip a localized indicator light when a phase fault strikes.
Housed in an ultra-slim 22.5 mm wide modular enclosure, this relay occupies the same footprint as a standard 1-pole circuit breaker on a symmetrical 35 mm DIN rail. This compact profile frees up vital panel real estate, simplifying refurbishment projects and allowing machine builders to pack advanced protection into tight layouts.

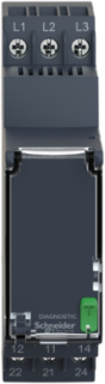

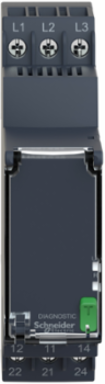

Featuring an ultra-fast internal response time of 200 milliseconds or less, the system isolates anomalies before they can induce mechanical strain on active machinery. Clear front-facing dual LEDs give technicians instant diagnostic clarity a green light confirms incoming power is healthy, while a yellow indicator confirms the active status of the output relay.
Built with a robust, self-extinguishing plastic housing, the module features a rugged electrical lifespan up to 100,000 cycles and mechanical endurance of 10 million operations. The design includes an option for a sealable, transparent front cover that stops unauthorized setting adjustments while maintaining an IP20 terminal and IP50 front-face finger-safe barrier.

Documentation & Downloads

Specifications

Key Specifications

Height	3.54 in
Country of Origin	Brazil, France, Indonesia, Sweden

Width	0.89 in

Complementary Attributes

Control Circuit Voltage Limits	183...528 V AC
Maximum Switching Current	8 A AC
Minimum Switching Current	10 mA 5 V DC

Line Rated Current	8 A
Maximum Switching Voltage	250 V AC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electromagnetic Compatibility	immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1immunity for industrial environments conforming to IEC 61000-6-2emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3emission standard for industrial environments conforming to IEC 61000-6-4, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
Overvoltage Category	III conforming to IEC 60664-1, III conforming to UL 508
Safety Reliability Data	MTTFd = 924.6 years, B10d = 850000
Vibration Resistance	0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6, 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
Certificate Agency	CE, EAC, RCM, GL, CSA, UL, CCC
Carbon Footprint Of The Distribution Phase [A4]	0.0116116364, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0004490264
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	93 kg CO2 eq., 92.70576
Local Publishable Date	2026-03-26
Stocking Flag	N
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2506066EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1918
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	RM22
Contacts Type And Composition	2 C/O
Dielectric Test Voltage	2.5 kV AC 50 Hz, 1 min IEC 60255-27
Housing Material	polycarbonate
Mechanical Durability	10000000 cycles
Phase	3 phase
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony Control Relays
Relay Type	control relay
Response Time	<= 200 ms<= 200 ms
Shock Resistance	15 gn 11 ms) not in operation IEC 60068-2-275 gn 11 ms) in operation IEC 60068-2-27
Status Led	LED (Yellow) relay ONLED (Green) power ON
Supply Voltage Limits	183-528 V AC
Switching Capacity In Va	2000 VA
Time Delay Type	without
Contacts Composition	2 C/O
Pep Code	ENVPEP2506066EN
Pep Verification Date	2019-05-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: Indonesia
Energy Model - Use [B6]	Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %	17

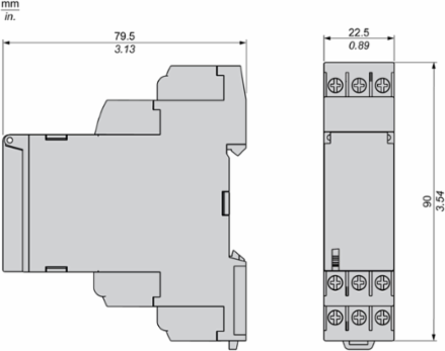

Height Useful	90 mm
Width Real	22.5 mm
[Us] Rated Supply Voltage	, self-powered, self-powered
Package Weight(Lbs)	104.000 g
Warranty (In Months)	18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	1052.28
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	345.6432
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	1851.552
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	1616.112
Water Pollution (M3) Operational Energy Use [B6]	3825.36

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Insulation Resistance	> 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27> 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27, > 100 MOhm 500 V DC IEC 60255-27
Relay Monitored Parameters	phase failure detection (2 or more phase cut), phase sequence, phase failure detection (2 or more phase cut)
Utilisation Category	AC-15 IEC 60947-5-1, DC-13 IEC 60947-5-1AC-1 IEC 60947-4-1, DC-1 IEC 60947-4-1
Voltage Detection Threshold	< 100 V AC, < 100 V AC< 100 V AC, < 100 V AC
Connections - Terminals	screw terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable endscrew terminals, 1 x 0.5...1 x 3.3 mm² 20 AWG...12 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end, screw connectors
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.0522965455, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	2 kg CO2 eq., 1.8499090909
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contacts Material	cadmium free
Control Type	with test button
Electrical Durability	100000 cycles
Measurement Range	208...480 V voltage AC
Mounting Support	35 mm DIN rail conforming to IEC 60715
Power Consumption In Va	15-15 VA 480 V AC 60 Hz
Product Or Component Type	3-phase control relay
Relay Name	RM22TG
Reset Time	1500 ms at maximum voltage
Returnability	Yes
Software Version	EIME v5.8.1
Supply Frequency	50...60 Hz +/- 10 %
Sustainable Packaging	Yes
Tightening Torque	0.6-1 N.m IEC 60947-1
Total Lifecycle Carbon Footprint	95 kg CO2 eq.
Measurement Range 4	208...480 V voltage AC
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To switch ON/OFF electrical contacts when the abnormal operating conditions is detected during 10 years and a 100% use rate.
Functional-unit Unit	unité (unit)
Energy Consumption On Product Lifetime In Kwh	189.216
Energy Model - Installation [A5]	Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; <lt/> 1kV; EU-27
Height Nominal	90 mm
Width Nominal	22.5 mm
[Uc] Control Circuit Voltage	208...480 V
Nbr. Of Units In Pkg.	1
Take-back	No
Air Pollution (M3) Operational Energy Use [B6]	3990.096
Net Use Of Fresh Water (M3) Operational Energy Use [B6]	336.1392
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	1616.112
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	235.44
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	235.44
Customs Code	8536490080

Environment Attributes Main

Ambient Air Temperature For Operation	-20-50 °C 60 Hz, -20-50 °C 60 Hz, -20-60 °C 50 Hz AC/DC, -20-60 °C 50 Hz AC/DC, -20-60 °C 50 Hz AC/DC-20-50 °C 60 Hz, -20-50 °C 60 Hz, -20-60 °C 50 Hz AC/DC, -20-60 °C 50 Hz AC/DC
Take Back	No
China Rohs Regulation	X
Carbon Footprint	94.6200262991
Environmental Disclosure	ENVPEP2506066EN
Ip Degree Of Protection	IP20 IEC 60529 terminals)IP40 IEC 60529 housing)IP50 IEC 60529 front panel)
Packaging Without Single Use Plastic	Yes
Relative Humidity	93-97 % 25-55 °C IEC 60068-2-30
Pep Verification Date	2019-05-01
Psr Version	PSR-0005-ed2-EN-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-158 °F, -40-70 °C, -40-158 °F
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2506066EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2506066EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
