Intermatic

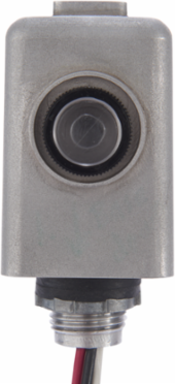

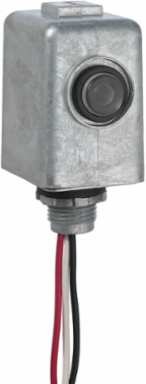

Intermatic EK4436SM NIGHTFOX EK Series Premium Metal Stem Mount Electronic Photocontrol, 120-277 V

NIGHTFOX EK Series Premium Metal Stem Mount Electronic Photocontrol, 120-277 V
NIGHTFOX EK Series Premium Metal Stem Mount Electronic Photocontrol, 120-277 V
  • MPN: EK4436SM
  • UPC: 078275148406
  • PPN: INT-EK4436SM
  • UNSPSC: 39121524

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$65.39/ EA

Description

NIGHTFOX EK Series Electronic Photocontrols are designed for permanent installation within outdoor-rated electrical enclosures, in-wall junction boxes, or lighting fixtures. This premium solution is suitable for use with high-efficiency, long-life LED luminaires. The unit mounts externally and requires a minimum enclosure aperture of 7/8" in diameter. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.

Features

  • Non-drift silicon light sensor with IR filter
  • DC relay with zero-crossing circuitry for extended life
  • Conformal coated PCB
  • 15-year design life
  • Exceeds 10,000 ON/OFF switching cycles
  • Fail ON mode
  • Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
  • 255 J MOV surge protection element
  • 1⁄2"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter
  • #18 AWG wire leads

Specifications

Specifications

Input Voltage Rating Range(s)
120-277 VAC, 50/60 Hz (Nominal Voltage)
Color
Gray
Marketing Description
NIGHTFOX EK Series Electronic Photocontrols are designed for permanent installation within outdoor-rated electrical enclosures, in-wall junction boxes, or lighting fixtures. This premium solution is suitable for use with high-efficiency, long-life LED luminaires. The unit mounts externally and requires a minimum enclosure aperture of 7/8" in diameter. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.
Width
1.75 in
Country of Origin
Mexico
Warranty Period8-Year limited
ApplicationsOutdoor Lighting Control
Height2.688 in
Depth2.188 in
