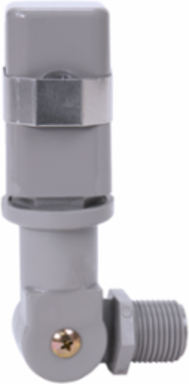

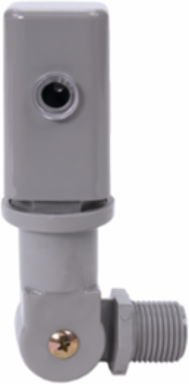

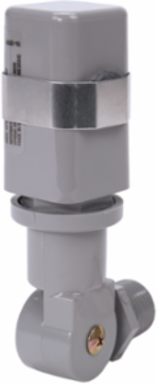

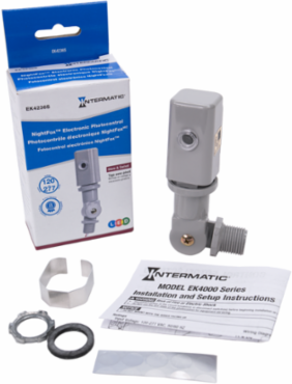

Intermatic EK4235S NIGHTFOX Electronic Photocontrol, 480 V, 1/2 Inch Stem
- MPN: EK4235S
- UPC: 078275152410
- PPN: INT-EK4235S
- UNSPSC: 39121524
CAD
$64.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
NIGHTFOX EK Series Electronic Photocontrols are designed for permanent installation within outdoor-rated electrical enclosures, in-wall junction boxes, or lighting fixtures. This premium solution is suitable for use with high-efficiency, long-life LED luminaires. The unit mounts externally and requires a minimum enclosure aperture of 7/8" in diameter. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.
Features
- Non-drift silicon light sensor with IR filter
- DC relay with zero-crossing circuitry for extended life
- Conformal coated PCB
- 15-year design life
- Exceeds 10,000 ON/OFF switching cycles
- Fail ON mode
- Ideal for single or multifixture HID and LED installations
- 220 J MOV surge protection element
- 1⁄2"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter
- #18 AWG wire leads
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage Rating Range(s)
- 480 VAC, 50/60 Hz
- Color
- Gray
- Marketing Description
- NIGHTFOX EK Series Electronic Photocontrols are designed for permanent installation within outdoor-rated electrical enclosures, in-wall junction boxes, or lighting fixtures. This premium solution is suitable for use with high-efficiency, long-life LED luminaires. The unit mounts externally and requires a minimum enclosure aperture of 7/8" in diameter. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.
- Width
- 1.313 in
- Country of Origin
- Mexico
Warranty Period8-Year limited
ApplicationsOutdoor Lighting Control
Height5.625 in
Depth1.25 in
