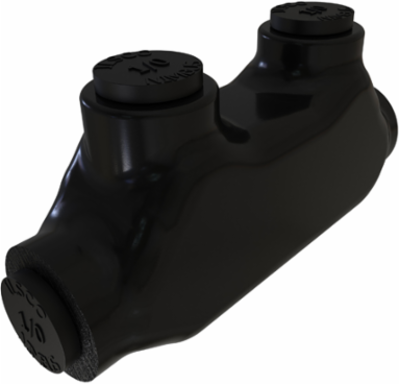

ILSCO PBT-1/0 Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector, Conductor Range 1/0-14, 2 Ports, Tin Plated, UL, CSA

  • MPN: PBT-1/0
  • UPC: 783669077001
  • PPN: ILC-PBT-1/0

CAD

$80.79

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector, Conductor Range 1/0-14, 2 Ports, Tin Plated, UL, CSA

Documentation & Downloads

Specifications

Key Specifications

Height1.627 in
Weight0.23 lbs
Length3.45 in
Width0.937 in

Voltage

Voltage Rating600 V

Dimensions

Drive Size Main3/16
Height BX (IN)2.25
Max Insulation OD (mm)13.208
Width BX (IN)5
Drive Type MainInternal Hex
Max Insulation OD (IN)0.52
Weight BX (LB)1.822

Testing Standards

CSA File NumberLR-29601
Prop65 ComplianceWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
UL / CULUS SpecificationUL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number453G
UL File NumberE6207

Additional Class Attributes

ConnectionMechanical
Number of Conductors2
Number of Ports / Wireways2
Replacement Part(s)PORTPLUG-1/0, SCREWCAP-1/0
Contains DE-OX®Yes
Number of Poles1
Number of Usable Ports2

Material and Finish

Conductor MaterialAluminum, Copper
InsulationPlastisol
Wire Binding Hardware FinishTin
Connector FinishTin
MaterialAluminum
Wire Binding Hardware MaterialAluminum

Conductor Ranges

Conductor Range AL Stranded (Primary, run, main, line)1/0 Str - 14 Str
Conductor Range CU Stranded (Primary, run, main, line)1/0 Str - 14 Str
Conductor Range CU Solid (Primary, run, main, line)10 Sol - 14 Sol
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol

Additional Technical Specifications

Conductor TypeSolid, Stranded

General

Bag Quantity1
Dual RatedYes
UPC Code78366907700
Carton Quantity DescriptionSTD PACK QTY 4
NEMA CodeS-588-4

Bolt and Screw Sizes

Number of Wire Binding Screws per Port1
Wire Binding Torque2/0 - 3 AWG = 50, 10 - 14 AWG = 35, 8 AWG = 40, 4 - 6 AWG = 45
Wire Binding Screw Size3/8

Color

ColorBlack

Environment and Temperature

Environmental ConditionsCold temperature rated to -45°C
Temperature Rating90°C
Flammability RatingInsulation rated per UL 94
