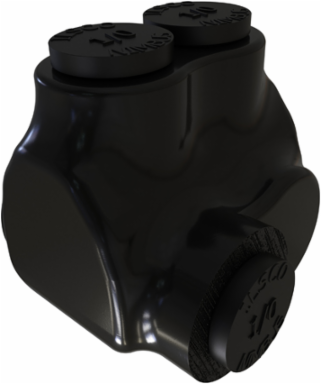

ILSCO PBTO-1/0 Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector Offset, Conductor Range 1/0-14, 2 Ports, Tin Plated, UL, CSA
- MPN: PBTO-1/0
- UPC: 783669078947
- PPN: ILC-PBTO-1/0
CAD
$50.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector Offset, Conductor Range 1/0-14, 2 Ports, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 1.627 in | 41.3258 mm
- Weight
- 0.141 lbs
Length1.623 in
Width1.825 in | 46.355 mm
Voltage
- Voltage Rating
- 600 V
Dimensions
- Drive Size Main
- 3/16
- Height BX (IN)
- 2.25
- Max Insulation OD (IN)
- 0.511
- Weight BX (LB)
- 1.746
- Width (mm)
- 46.355
Drive Type MainInternal Hex
Height (mm)41.3258
Max Insulation OD (mm)12.9794
Width BX (IN)5
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Control Number
- 453G
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
ROHS IndicatorIND
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 2
- Number of Ports / Wireways
- 2
- Replacement Part(s)
- PORTPLUG-1/0, SCREWCAP-1/0
Contains DE-OX®Yes
Number of Poles1
Number of Usable Ports2
Material and Finish
- Conductor Material
- Aluminum, Copper
- Insulation
- Plastisol
- Wire Binding Hardware Finish
- Tin
Connector FinishTin
MaterialAluminum
Wire Binding Hardware MaterialAluminum
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 1/0 Str - 14 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 1/0 Str - 14 Str
Conductor Range CU Solid (Primary, run, main, line)10 Sol - 14 Sol
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366907894
Carton Quantity DescriptionSTD PACK QTY 6
NEMA CodeS-588-4
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Torque
- 4 - 6 AWG = 45, 2/0 - 3 AWG = 50, 10 - 14 AWG = 35, 8 AWG = 40
Wire Binding Screw Size3/8
Color
- Cap Color Main
- Black
- Color
- Black
Cap Color TapBlack
Environment and Temperature
- Environmental Conditions
- Cold temperature rated to -45°C
- Temperature Rating
- 90°C
Flammability RatingInsulation rated per UL 94
