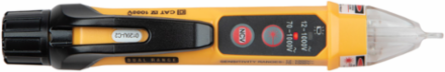

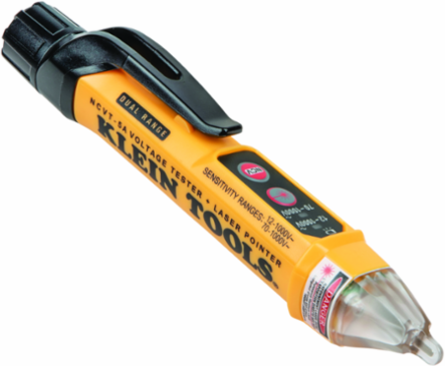

Klein Tools NCVT-5A Non-Contact Voltage Tester Pen, Dual Range (12-1000V AC), Laser Pointer, CAT IV 1000V
- MPN: NCVT-5A
- UPC: 092644692949
- PPN: KLT-NCVT-5A
- UNSPSC: 41113637
CAD
$43.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Klein Tools NCVT-5A Dual-Range Non-Contact Voltage Tester with integrated laser pointer detects 70 to 1000V AC (Mode 1) or 12 to 1000V AC Mode 2). Audible alerts increase in frequency as voltage level rises or as you move closer to the source. Laser operates independently or with voltage detection. Class IIIa laser (21CFR1040.10 and 1040.11 - IEC60825-1 Ed.3) with an output power of less than or equal to 5mW at 630-670nm. CAT IV 1000V safety rating.
Features
- Voltage Tester provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, as well as AC voltage in security, entertainment, communications, environmental control and irrigation systems
- Dual-range testing: select 12 to 1000V AC which is perfect for low voltage systems such as doorbells, environmental control or irrigation systems, or select 70 to 1000V AC which is perfect for detecting systems such as electrical mains supply

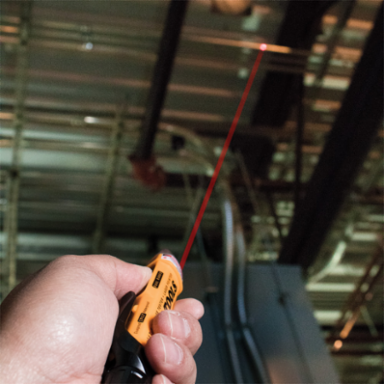

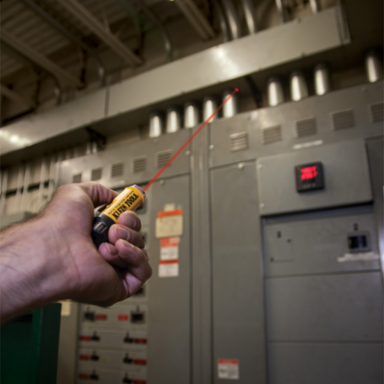

- Bright integrated laser pointer for identifying objects of interest at distance on the jobsite
- Simple to use intuitive interface is easy to change between voltage detection ranges and easy to determine the currently active range

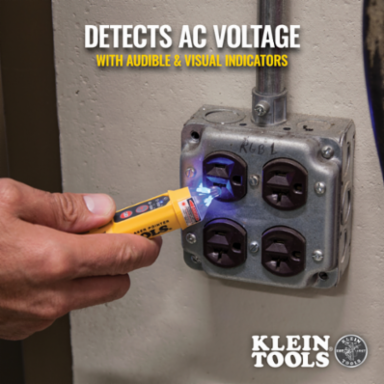

- Delivers simultaneous visual and audible voltage indicators when AC voltage is detected
- Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source
- Built to withstand a 9.9-Foot / 3-meter drop
- Auto Power-Off conserves battery life

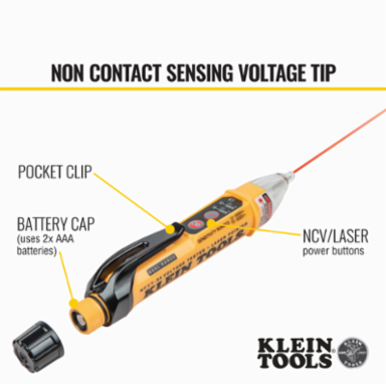

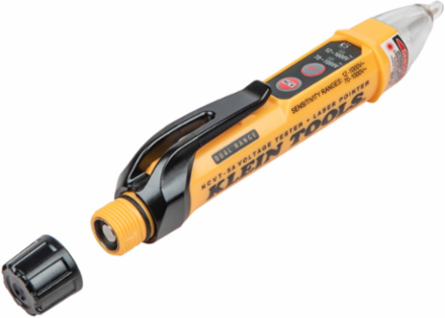

- Screw-thread battery cap
- Lightweight, compact tool with pocket clip provides convenient storage and quick access
- CAT IV 1000V safety rating
- US Patent No. D750985
- Class IIIa laser (21CFR1040.10 and 1040.11 - IEC60825-1 Ed.3) with an output power of less than or equal to 5mW at 630-670nm
- Integrated High Strength Red Laser Pointer, Dual Range Tester (70-1000V; 12V-1000V) AC Voltage Detection, Simultaneous Visual and Audible Voltage Indicators in the Presence of AC Voltage; US Patent No. D750985
Documentation & Downloads
Specifications
Key Specifications
- Pollution Degree
- 2
- Frequency
- 50 to 500 Hz
- Standard
- CAT IV 1000V; Laser: Class IIIa, 630-670nm, Max Power <5mW
- Application
- Dual-Range Non-contact Detection of the Presence of AC Voltage from 12-1000 VAC or from 70-1000V AC
- Battery Life
- Laser On - 31 hr; NCV On with Visual and Audible Alerts - 25 hr
- Voltage
- 12 – 1000V AC; 70 – 1000V AC
- Overall Width
- 2.4 cm (0.96 Inch)
- Height
- 0.9580 in
- Depth
- 6.0000 in
TypeNon-Contact Voltage Tester
Drop Protection9.8' (3 m)
Batteries2 x AAA
MaterialPlastic and Electronic Assemblies
IncludedNCVT; Batteries
Overall Height2.9 cm (1.16 Inch)
Overall Length6 Inch (15.2 cm)
Width1.1520 in
Weight0.0930 lbs
