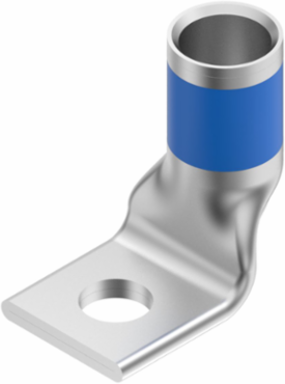

Burndy YA1CL690 HYLUGTM Terminal Connector, 1 AWG Copper, Tin Plated, 1 Hole, 35 kV
- MPN: YA1CL690
- UPC: 781810313138
- PPN: BUR-10015173
CAD
$28.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cu Tubing Cu HYLUG™; 1 Hole with Inspection Window; #1 AWG Code,75 Navy; 600V-35kV; 1/2" stud; Standard; Compression; Green
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 7/8 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Hole Size mm
- 13 mm
- Dimension - Length Overall inch
- 1.40 in
- Dimension - Outside Diameter inch
- 0.46 in
- Dimension - Strip Length inch
- 15/16
- Physical Attribute - Tongue Angle
- 90 Degree
Dimension - B Length inch0.88 in
Dimension - Hole Size inch0.53 in
Dimension - L Length Overall mm36 mm
Dimension - N inch0.53 in
Dimension - Pad Width inch0.73 in
Dimension - Z inch0.55 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Size
- 1 AWG
Conductor - Copper Str Navy Size75 (37) Navy
Conductor - MaterialCopper
General
- Color Code
- Green
- Die Index
- 11
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin - Electro Plated
- Type
- Long Barrel, Tin Plated
- UPC 12 Digit
- 7818103131388
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810313138
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 5
