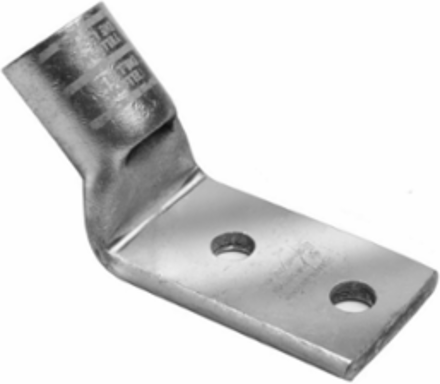

Burndy YA27L45 Long Barrel Copper Compression Terminal, 3/0 AWG, 1 Hole, 1/2 Inch Stud, 45 Degree Angle
- MPN: YA27L45
- UPC: 781810313572
- PPN: BUR-10015218
CAD
$30.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Tubing Compression Terminal, 1 Hole W/InspWindow, 3/0 AWG Code, 150 Navy, 1/2" Stud, 45 Deg Bent, Standard Barrel
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Hole Size inch
- 0.53 in
- Dimension - L Length Overall mm
- 61 mm
- Dimension - N inch
- 0.53 in
- Dimension - Pad Width inch
- 0.91 in
- Dimension - Thread Size
- 1/2
- Physical Attribute - Tongue Angle
- 45 Degree
Dimension - B Length inch1.00 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size mm13 mm
Dimension - Length Overall inch2.41 in
Dimension - Outside Diameter inch0.62 in
Dimension - Strip Length inch1-1/16
Dimension - Z inch0.55 in
Thickness - Pad0.13 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 150 (61) Navy
- Conductor - Material
- Copper
Conductor - Copper Str Size3/0 AWG
General
- Color Code
- Orange
- Die Index
- 14
- Material
- Copper
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810313572
Connector TypeTerminal
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes1
Plating TypeTin - Electro Plated
TypeLong Barrel, Tin Plated
UPC 12 Digit7818103135722
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 25
