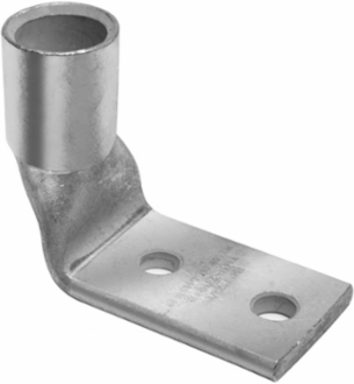

Burndy YA28L2TC3890 Copper HYLUGTM Terminal Connector, 4/0 AWG, 3/8 Inch Stud, Tin Plated

MPN: YA28L2TC3890
UPC: 781810019412
PPN: BUR-50237E

$41.20

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Copper HYLUG™, 1 Hole W/ Inspection Window , 4/0 AWG FLEX, 3/8" stud, Tin electro plated

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction	7/8 in
Dimension - Bolt Hole Size inch	0.39 in
Dimension - Hole Size inch	0.40 in
Dimension - L Length Overall mm	58 mm
Dimension - N inch	0.41 in
Dimension - Pad Width inch	1.02 in
Dimension - Stud Size inch	3/8
Dimension - Z inch	0.42 in

Dimension - B Length inch	0.88 in
Dimension - Bolt Size fraction	3/8
Dimension - Hole Size mm	10 mm
Dimension - Length Overall inch	2.30 in
Dimension - Outside Diameter inch	0.69 in
Dimension - Strip Length inch	1-1/8
Dimension - Thread Size	3/8
Physical Attribute - Tongue Angle	90 Degree

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Industry Standard(s)	UL468A-468B
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
Standards - Industry Standards Met	UL468A-468B
UL Listed	Yes

Conductor Related

Conductor - Copper DLO Size Range	N/A
Conductor - Copper Str Size	4/0 AWG

Conductor - Copper Str Navy Size	200 (61) Navy
Conductor - Material	Copper

General

Color Code	Purple
Die Index	15
Feature - Barrel Type	Standard
Physical Attribute - Number of Holes	2
Plated	Y
Trade Name	HYLUG™
UPC	781810019412

Connector Type	Terminal
Feature - Barrel Style	Chamfered
Material	Copper
Physical Attribute - Tongue Type	Standard
Plating Type	Tin - Electro Plated
Type	Standard Barrel, Tin Plated
UPC 12 Digit	7818100194122
