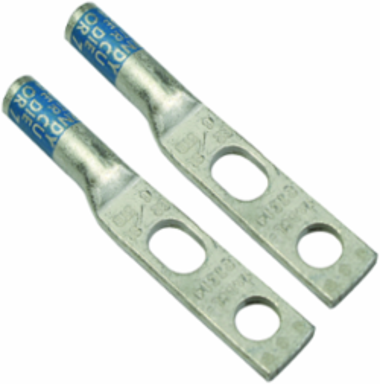

Burndy YA2C2TC38SL HYLUGTM Terminal Connector, 2 AWG Copper, 3/8 Inch Stud Size, 1-5/16 Inch Strip Length
- MPN: YA2C2TC38SL
- UPC: 781810237328
- PPN: BUR-25020080
CAD
$25.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CULUG- 2 STR-3/8-SLOTTED
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.25 in
- Dimension - D inch
- 1.84 in
- Dimension - Hole Size mm
- 10 mm
- Dimension - Length Overall inch
- 3.42 in
- Dimension - Outside Diameter inch
- 0.42 in
- Dimension - Strip Length inch
- 1-5/16
- Dimension - Z inch
- 0.43 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - Hole Size inch0.41 in
Dimension - L Length Overall mm87 mm
Dimension - N inch0.41 in
Dimension - Pad Width inch0.60 in
Dimension - Stud Size inch3/8
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Solid Size
- 2 AWG
- Conductor - Copper Str Navy Size Range
- 60 (37) Navy
- Conductor - Material
- Copper
Conductor - Copper Str Navy Size60 (37) Navy
Conductor - Copper Str Size2 AWG
General
- Color Code
- Brown
- Die Index
- 10
- Material
- Copper
- Plated
- Y
- Temperature Rating
- 194
- Type
- Long Barrel, Tin Plated
- UPC 12 Digit
- 7818102373288
Connector TypeTerminal
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810237328
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 50
